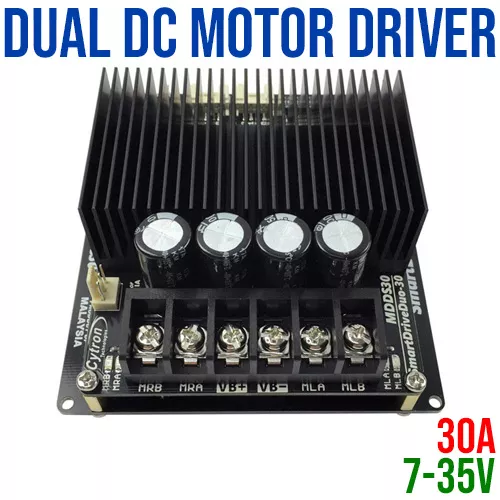

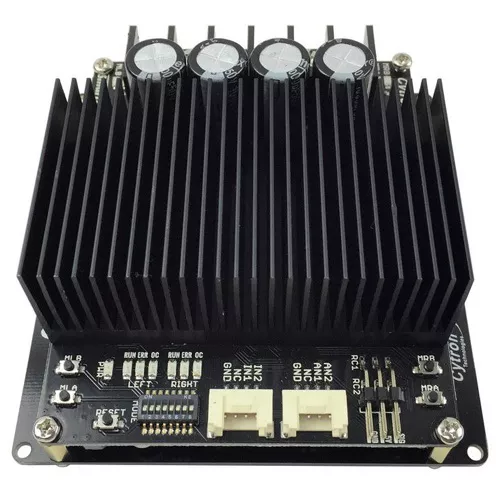

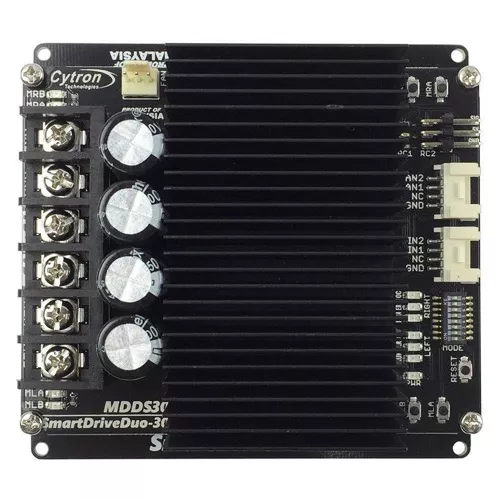

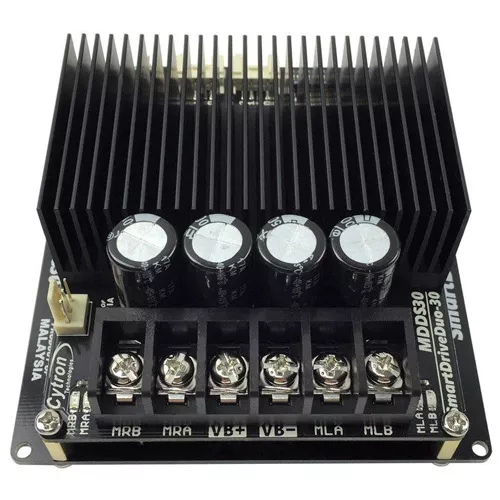

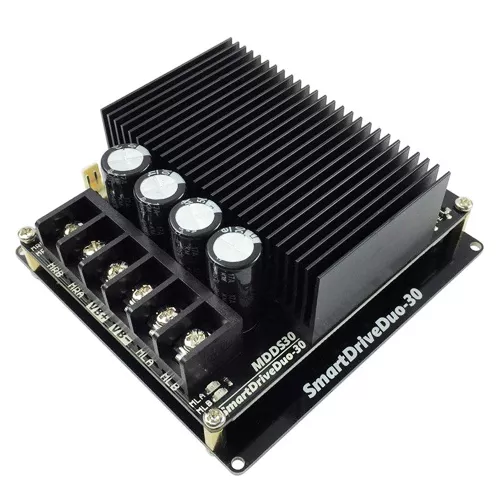

Dual Motor Driver - 30A, 7-35V
This Dual Motor Driver is a versatile motor driver perfect for various applications like conveyor systems, AGVs, mobile robots, and combat robots. This driver allows independent or mixed control of two DC brushed motors, accepting signals from RC, microcontrollers (PWM/analog voltage/UART), and more. With a peak current of 80 Amps and continuous current of 30 Amps per channel, it's ideal for medium-power motors. The MDDS30 is easy to set up, supports a wide voltage range (7V to 35VDC), and features error indicators, regenerative braking, and convenient control options.
Note: Power input does not have reverse-voltage protection. Connecting the battery in reverse polarity will damage the motor driver instantaneously.
Quick Spec
- Model: MDD30A
- Input Supply Voltage: 7 ~ 35V
- Continues Current: 30A
- Peak Current: 80A
- PWM Frequency: 18 KHz (Input & Output)
- Bidirectional control for 2 brushed DC motors
- Inputs compatible with 1.8V, 3.3V, 5V and 12V logic (Arduino, Raspberry Pi, PLC, etc)
- Protection: Overcurrent protection with active current limiting, temperature protection, and under voltage shutdown
- Dimensions: 81.3 x 101.6 x 42mm
Board Layout

Wiring Diagram

Code
Resources
Shipping List

- 1 x Dual Motor Driver - 30A, 7-35V
- 2 x Grove 4-pin Buckled, 20cm Cable
- 2 x 2561 3-way connector extension wire
Dual Motor Driver - 30A, 7-35V
- Brand: Cytron
- Product Code: MDD30A
- Weight: 0.308kg
- Product Status : Active
