Mini On/Off Push button 12V 5A (4 Pack)
This clicky Mini On/Off Button switch makes a great power switch or mode toggler. They're often referred to as 'flashlight' switches because you see them used in small flashlights. It can reliably handle up to 500mA and up to 12VDC. This is a really satisfying switch with large flat contacts that are easy to solder or clip on to. Best of all, there's holes in the two contacts, so you could use this in a wearable project where the switch is sewn using conductive thread.
Quick Spec
- Rated Load: 12V @ 0.5A
- Contact Resistance: ≤50mΩ
- Temperature Usage Range: -25ºC ~ 70ºC
- Operating force: 5N ~ 12N

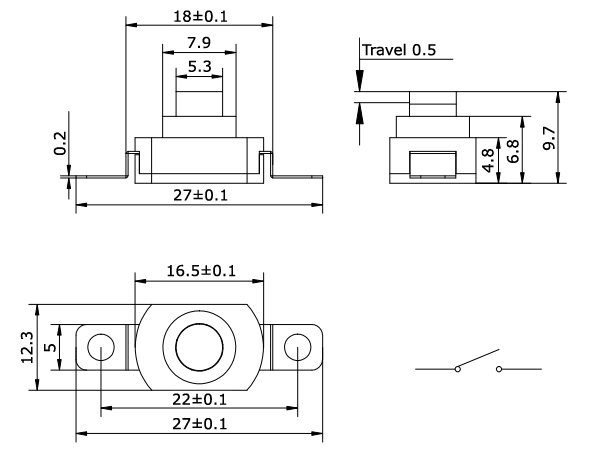

Dimensions
Shipping List
- 4 X Mini On/Off Push button
Mini On/Off Push button 12V 0.5A (4 Pack)
- Brand: Adafruit
- Product Code: MINI-1205
- Weight: 0.006kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | DD033 |
| Stellenbosch | In Stock | Z3036 |
We ship free of charge between branches to complete your order.
-
R14.00 (Inc Tax: R16.10)
