USB Mini-B Connector - SMD (4 Pack)
This is a USB type 'Mini-B' female SMD connector. This is a 5-pin Mini-B surface mount connector commonly found in MP3 players, media/disk readers, USB hubs, pretty much anything small and USB.
Quick Spec
- Contact: Phosphor Bronze
- Size: 9 x 7.5 x 4mm
- Main Color: Silver Tone, Black
- Voltage Rating of 30V
- Current Rating of 1A
- Expected Life Cycles are 5000
- Weight: 12g
Pinout
| PIN | NAME | DESCRIPTION |
|---|---|---|
| 1 | VCC | +5 VDC |
| 2 | D- | Data - |
| 3 | D+ | Data + |
| 4 | ID | USB OTG ID |
| 5 | GND | Ground |
Resources

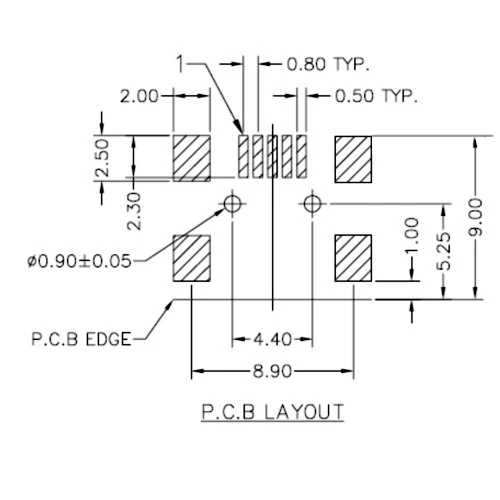

PCB Pattern
Shipping List
- 4 x USB Mini-B Connector - SMD
USB Mini-B Connector - SMD (4 Pack)
- Brand: Generic
- Product Code: MINI-USB-5P-SMD
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | CC156 |
| Stellenbosch | In Stock | C0210 |
We ship free of charge between branches to complete your order.
-
R12.00 (Inc Tax: R13.80)
