Mini USB Breakout Module

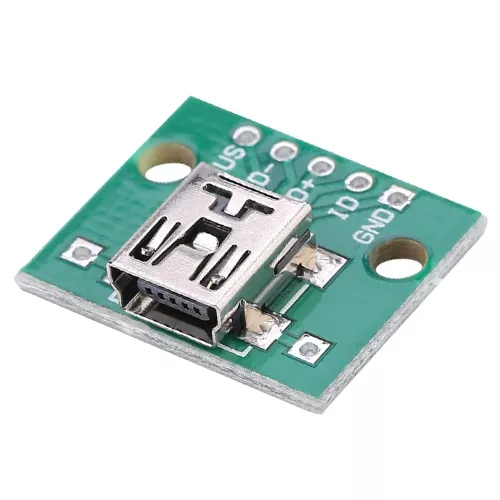

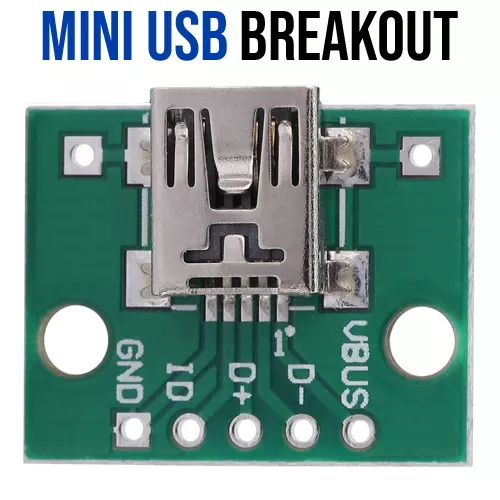

This simple board breaks out all five pins of a USB Mini-B connector to a 0.1″ pin spacing that is compatible with standard perfboards, solderless breadboards, and 0.1" connectors. This board breaks out the VBUS, GND, D-, D+ and ID pins of a USB Mini-B connector. The VBUS and GND pins can be used to power your project from USB, while the D- and D+ pins give you access to the USB’s differential data signal. Each of these pins, along with the ID pin, are broken out into a 1×5 row of 0.1"-spaced pins on the board. The included 1×5 straight male header can be soldered to these pins to allow the board to be used with perfboards, solderless breadboards, and 0.1" connectors.
Quick Spec
- Type: USB Mini-B
- Dimensions: 20 x 18mm
- Weight: 4g
Shipping List
- 1 X USB Mini-B Connector Breakout
Mini USB Breakout Module
- Brand: Generic
- Product Code: MINI-USB-MOD
- Weight: 0.003kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | BB014 |
| Stellenbosch | In Stock | L54 |
We ship free of charge between branches to complete your order.
-
R18.00 (Inc Tax: R20.70)
