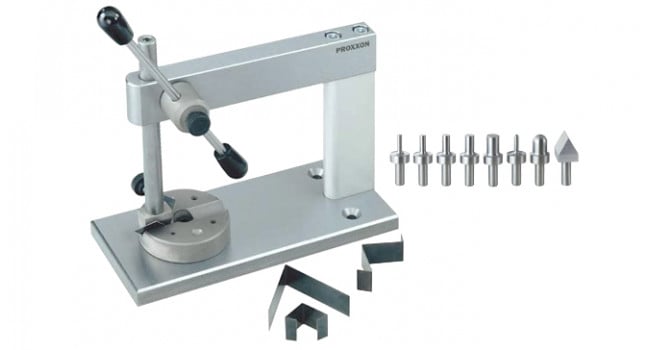

Proxxon MP120 Mini Press

Designed for pressing, extrusion, riveting, printing, hemming, bending of wires and sheets. Also suitable for stamping, beading or shaping easily compliant materials (eg copper, brass). The individual extensions are inserted into the rack and are fixed with a tightening screw. The opposite side, which is made of hardened steel, can be easily turned to push the tip of the bit into the desired hole. Pressure force approx. 1.000N (100 kg). The maximum stroke of the toothed rack with inserted insert is 65mm, in the case of using the rotary hardened plate the stroke is 50mm. The fixed steel arm is 120mm long. The hardened steel base plate has dimensions of 80 x 190 mm and can be fixed to the table top with screws (not included), holes 8 mm.

Quick Spec

  • 120mm throat, ground steel baseplate 80 x 190mm
  • Maximum height with punch fitted is 65mm
  • Precision tool for precision mechanics and model makers
  • Includes 5 cylindrical surface hardened punching tools
  • Plus 2 semi-spherical profiles 3mm and 9mm, and 90° square prism
  • Exerts 1,000N(100kg) of force
  • Net Weight: 2.875kg

Shipping List

PROXXON-MP120-001
  • 1 x Proxxon MP120 Mini Press
  • 5 x Cylindrical Punching Tools (3mm, 4mm, 5mm, 6mm and 8mm)
  • 2 x Semi-Spherical Punching Tools (3mm and 4mm)
  • 1 x 90 degree Square Prism Punching Tool


Proxxon MP120 Mini Press

  • Brand: Generic
  • Product Code: MP120
  • Weight: 2.875kg
  • Stock

    Warehouse Stock Status Location
    Centurion Limited Stock DX2-05
    Stellenbosch New Product Arriving Soon

    We ship free of charge between branches to complete your order.

  • R2,165.00 (Inc Tax: R2,489.75)
