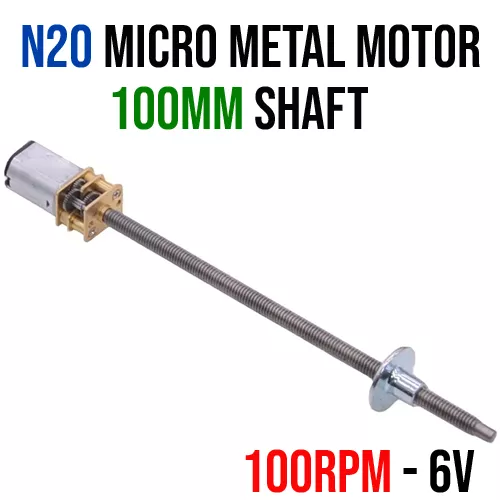

N20 Micro Metal Gear Motor with 100mm M4 Shaft - 100RPM, 6V

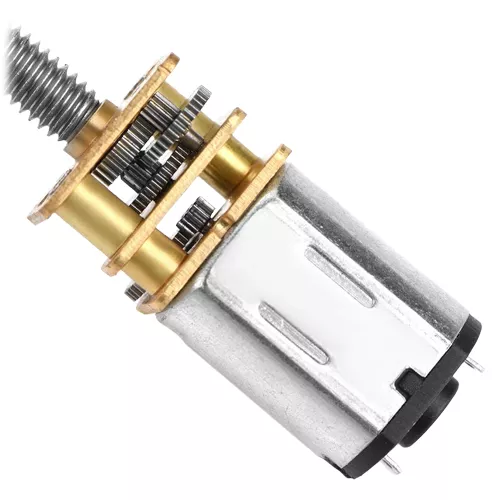

This DC N20 Micro Metal Gear Motor has an integrated M4 x 100mm threaded rod as its output shaft, which allows it to be used as a linear actuator. Rated at 6V, the no-load speed is 100RPM, with a stall torque of 3.2kg.cm. The motor comes with a hub (15mm dia. x 8mm length) that fits on the M4 threaded shaft.
Quick Spec
- Operating Voltage: 6V
- No-load Speed: 100 RPM
- Load Speed: 80 RPM
- Rated Torque: 0.4 kg.cm
- Rated Current: 160 mA
- Stall Torque: 3.2 kg.cm
- Stall Current: 200 mA
Dimensions
Shipping List
- 1 x N20 Micro Metal Gear Motor with 100mm M4 Shaft - 100RPM, 6V
- 1 x Hub
N20 Motor with 100mm M4 Shaft - 100RPM, 6V
- Brand: Generic
- Product Code: N20-100-L100-6V
- Weight: 0.021kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R189.00 (Inc Tax: R217.35)
