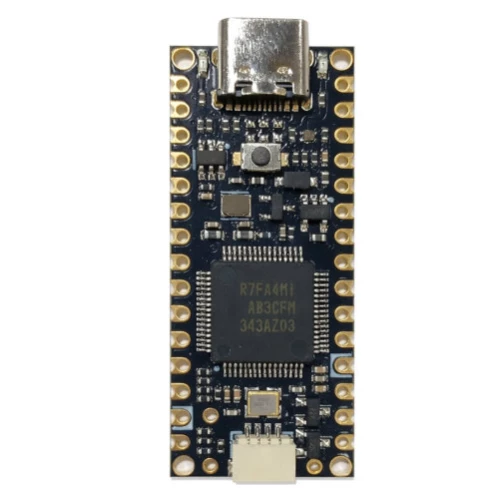

Nano R4 Compatible
The Nano R4 features the powerful Renesas RA4M1 microcontroller with a 32-bit Arm® Cortex®-M4 core running at 48 MHz. This Nano R4, is 100% compatible with the original Arduino Nano R4 and the same form factor ensures compatibility with countless accessories. At the same time, modern features like USB-C®, CAN bus and an onboard Qwiic connector make it a versatile choice for embedded, automation and prototyping projects.

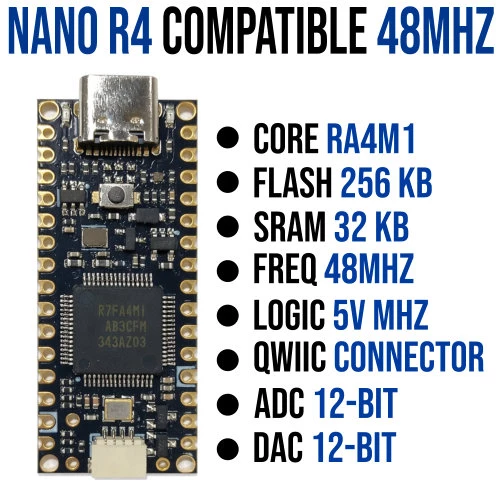

Quick Spec
- Microcontroller: Renesas RA4M1 – Arm® Cortex®-M4 @ 48 MHz
- Flash Memory: 256KB
- SRAM: 32KB
- Operating Voltage: 5V
- Logic Level: 5V (Compatible with Nano 3 projects)
- Input Voltage (VIN): 6–21V
- Digital I/O Pins: 14 (11 PWM capable)
- Analog Inputs: 8
- Analog Output: 1 (DAC)
- Communication Interfaces: UART, I2C, SPI, CAN
- Qwiic I²C Connector: Yes
- Connectivity: USB-C
- On-board LED: Yes (Pin 13)
- Dimensions: 45 x 18 mm
- Weight: 5g

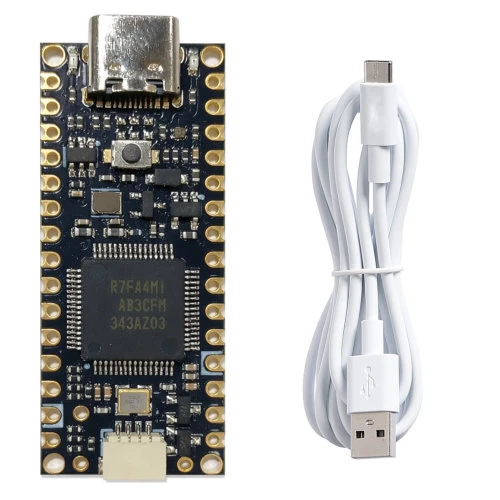

Shipping List
- 1 x Nano R4 Compatible
- 1 x USB C cable
Nano R4 Compatible
- Product Code: NANO-R4
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R218.00 (Inc Tax: R250.70)
Tags: nano, r4, compatible
