• Description

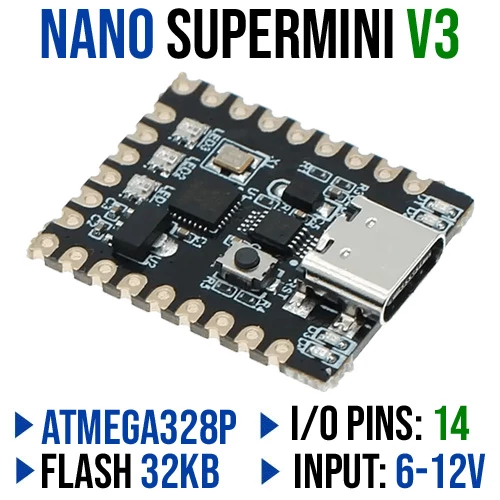

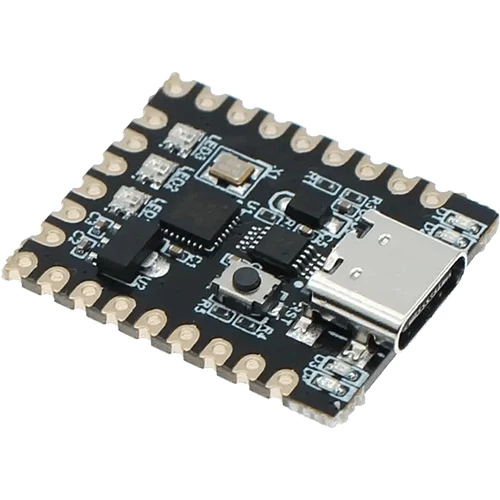

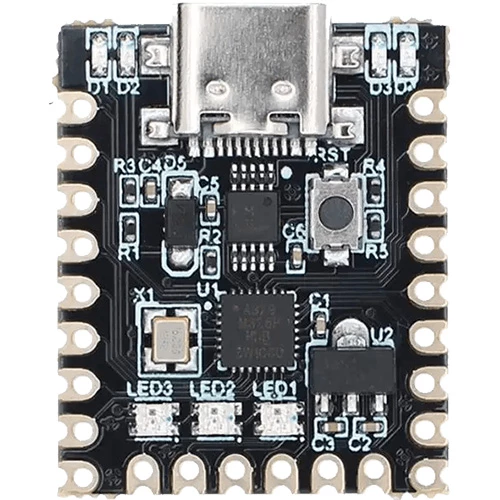

Nano V3 Super Mini – CH340 USB-C

The Nano V3 Super Mini – CH340 USB-C is a compact, Arduino®-compatible development board built around the reliable ATmega328P microcontroller. Running at 16 MHz with 32 KB Flash, 2 KB SRAM, and 1 KB EEPROM, it delivers stable and efficient performance for both beginner and advanced electronics projects. Its ultra-small form factor makes it ideal for space-constrained designs without sacrificing functionality.



Featuring a modern USB Type-C connector and onboard CH340 USB-to-UART converter, programming and power connection are simple and convenient. With multiple digital, analog, PWM, and serial interfaces, this board offers the flexibility needed for prototyping, embedded systems, automation projects, and DIY electronics builds.

Quick Spec

• Microcontroller: ATmega328P
• USB-UART Converter: CH340 (USB Type-C interface)
• Operating Frequency: 16 MHz
• Flash Memory: 32 KB
• SRAM: 2 KB
• EEPROM: 1 KB
• Digital I/O Pins: 14 (PWM: 3, 5, 6, 9, 10, 11)
• Analog Inputs: 6 (A0–A5)
• Input Voltage (USB): 5 V
• Input Voltage (VIN): 6–12 V
• Output Voltage: 3.3 V / 5 V
• Maximum 5 V Input Current: 1 A
• Dimensions: 25 × 18 × 4.5 mm
• Compatibility: Arduino® compatible

Dimensions

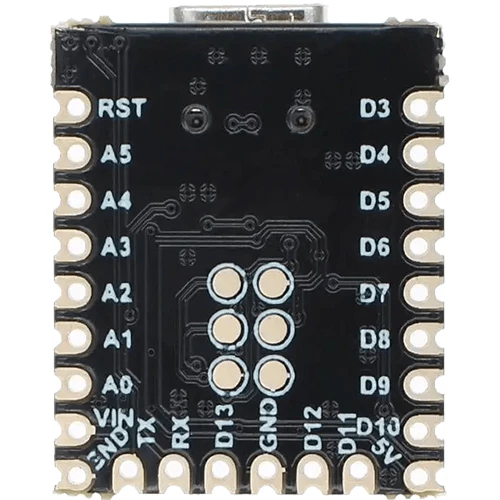

Pinout

Resources

• GitHub

Shipping List

• 1 x Nano V3 Super Mini – CH340 USB-C
• 1 x Header Pin Set

Nano V3 Super Mini – CH340 USB-C

• Brand: Generic
• Product Code: NANO-V3-MINI
• Weight: 0.005kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	No Stock
Stellenbosch	No Stock
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R78.00 (Inc Tax: R89.70)
