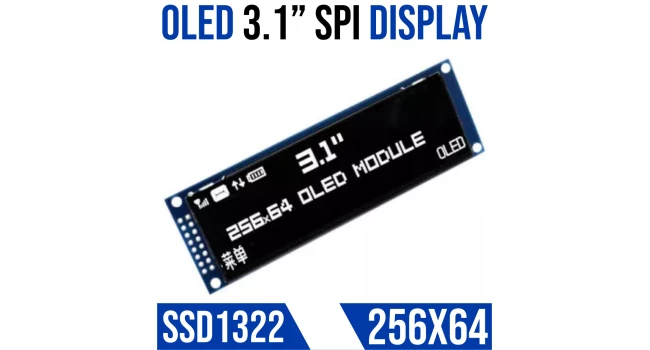

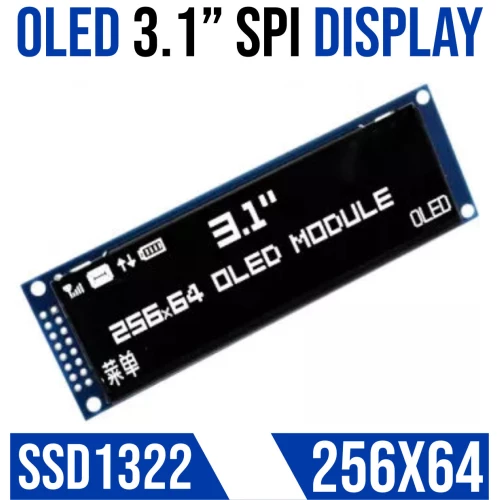

OLED 3.1" Display SSD1322 3.3V - White
This is a 3.12 inch OLED display module with a 256x64 resolution. These OLED graphic displays offer very good contrast and require no back lighting. The display is interfaced SPI making it ideal for projects that need a large, clear character or graphical display output that needs to be read indoors and out.
These OLEDs use the popular SSD1322 driver IC and can easily be used with Arduino, Raspberry Pi and other platforms via the SPI bus. The OLEDs can achieve a higher contrast ratio than your standard LCDs, as well as having a much faster response time.
Quick Spec
- Size: 3.12"
- Pixels: 256 x 64
- Type: OLED
- Colour: White
- Driver IC: SSD1322
- Working Voltage: 3.3V
- Interface: SPI
- Dimensions: 100 x 33.5 x 6.3mm
- Net Weight: 46g
Dimensions
Schematic
Resources
Shipping List
- 1 x OLED 3.1" Display SSD1322 3.3V - White
OLED 3.1 inch Display SSD1322 3.3V - White
- Brand: Generic
- Product Code: OLED-31-SPI-33V-WHI
- Weight: 0.047kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R489.00 (Inc Tax: R562.35)
