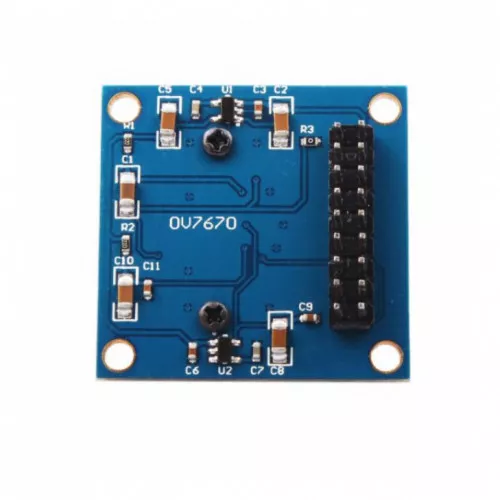

OV7670-V2 640x480 VGA Camera Module with I2C

  • Brand: Generic
  • Product Code: OV7670-V2
  • Stock

    Warehouse Stock Status Location
    Centurion In Stock X020
    Stellenbosch In Stock Z1072
  • R190.00 (price excl. VAT)


OV7670-V2 640x480 VGA Camera Module with I2C

This is the new iteration of the OV7670 VGA Camera + I2C inteface, based on the popular OV7670 image sensor. This camera module can buffer an entire VGA frame at 30fps frame rate, and it thus enables, low speed microcontroller boards like the arduino UNO to take photos.The camera module is powered from a single +3.3V power supply, making this the perfect camera module for cellular devices, pds's, toys etc.

Quick Spec

  • Optical size 1/6 inch
  • Resolution 640×480 VGA
  • Onboard regulator, only single 3.3V supply needed
  • Mounted with high quality F1.8 / 6mm lens
  • Output support for Raw RGB, RGB (GRB 4:2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) formats
  • High sensitivity for low-light operation
  • Low operating voltage for embedded portable apps
  • Standard SCCB interface compatible with I2C interface
  • Supports image sizes: VGA, CIF, and any size scaling down from CIF to 40×30
  • VarioPixel® method for sub-sampling
  • Automatic image control functions including: Automatic
  • Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance (AWB), Automatic Band Filter (ABF), and Automatic Black-Level Calibration (ABLC)
  • ISP includes noise reduction and defect correction
  • Supports LED and flash strobe mode
  • Supports scaling
  • Flicker (50/60 Hz) auto detection

Resources

Shipping List

  • 1 X OV7670-V2 640x480 VGA Camera Module with I2C


Tags: ov7670, v2, camera, module, vga, i2c, 640x480
