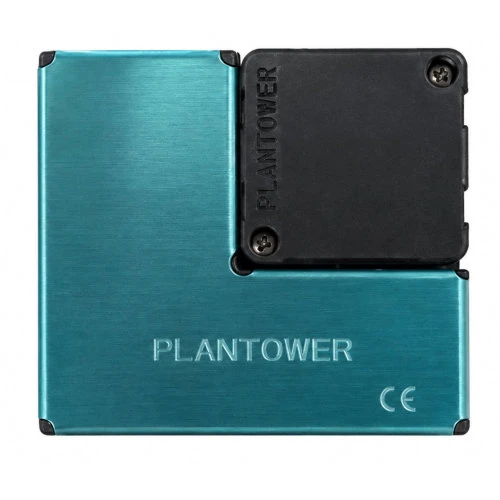

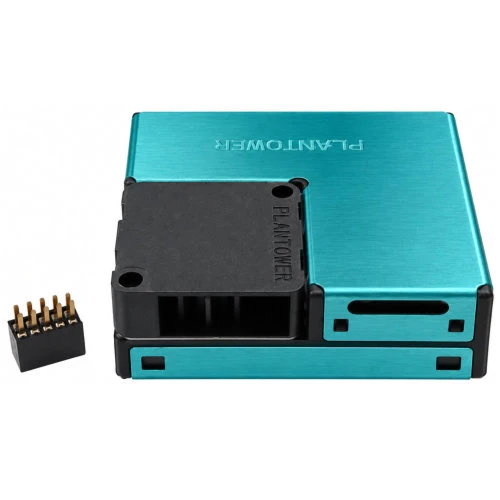

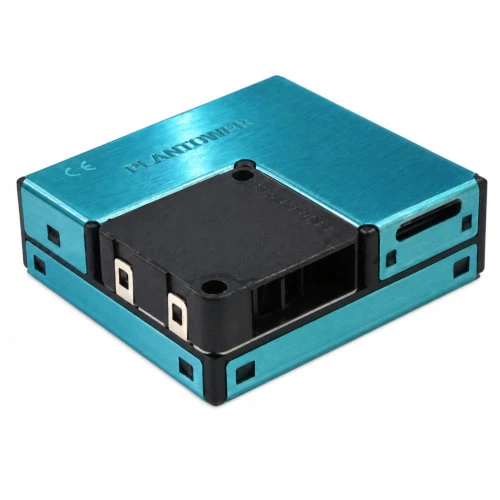

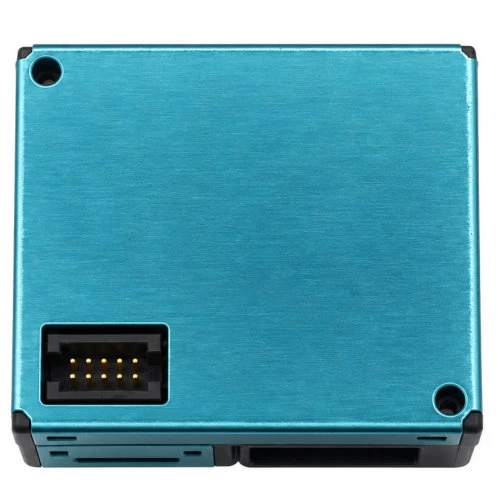

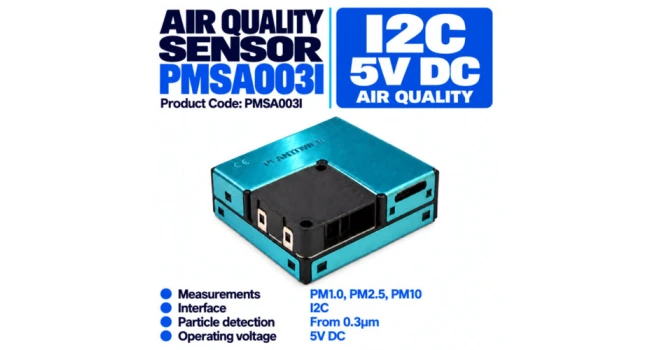

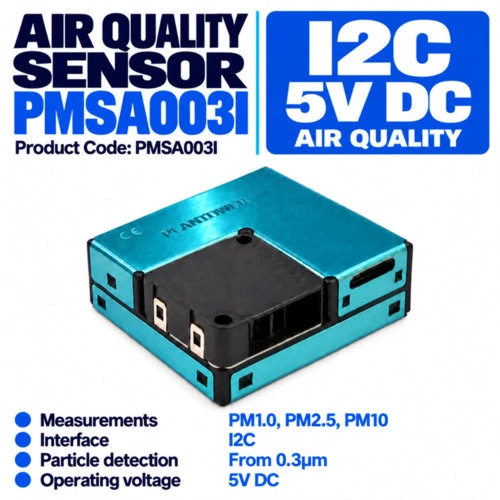

PMSA003I Air Quality Sensor I2C
The PMSA003I measures airborne particles using laser scattering, reporting PM1.0, PM2.5 and PM10 concentrations through I2C. Its compact design supports air quality monitors, smart ventilation systems and environmental sensing projects.
Quick Spec
- Detection Method: Laser scattering
- Measurement Outputs: PM1.0, PM2.5 and PM10 concentrations
- Interface: I2C, 100kHz, 3.3V logic
- Supply Voltage: 5V DC
- Minimum Detectable Particle Diameter: 0.3µm
- Effective Measurement Range: 0–500µg/m³ for PM2.5
- Concentration Resolution: 1µg/m³
- Response Time: Single response under 1 second; total response up to 10 seconds
- Current Consumption: Up to 100mA active; up to 200µA standby
- Operating Temperature: -10°C to +60°C
- Dimensions: 38mm×35mm×12mm
Resources
Shipping List
- 1x PMSA003I Air Quality Sensor I2C
PMSA003I Air Quality Sensor I2C
- Brand: Generic
- Product Code: PMSA003I
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | BB152 |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R468.00 (Inc Tax: R538.20)
