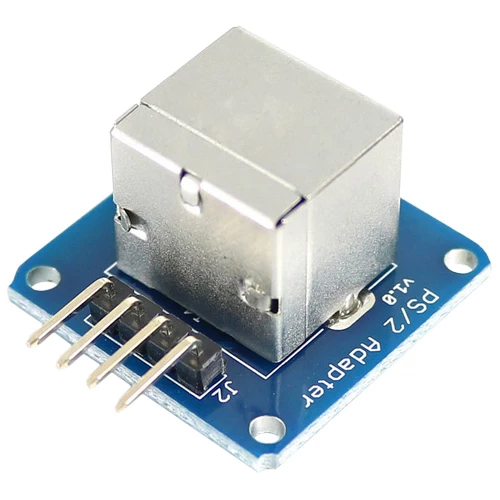

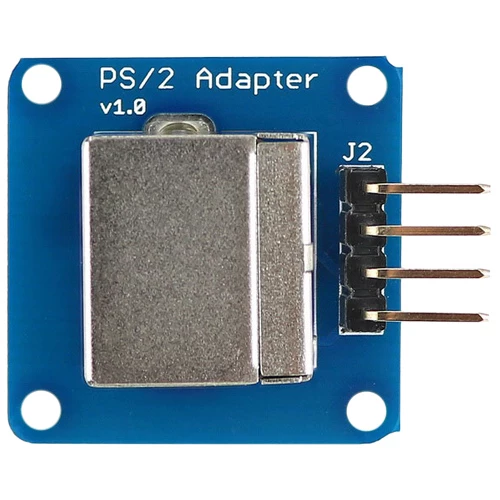

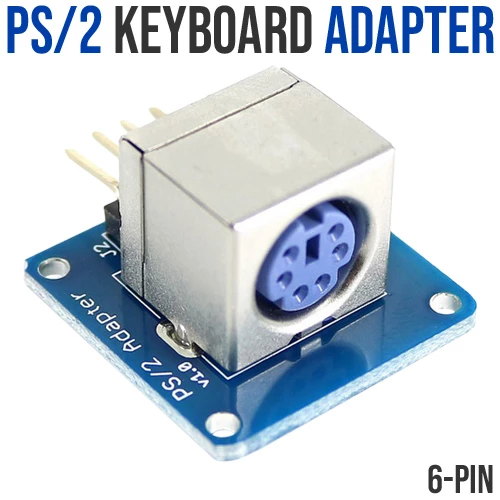

PS/2 Keyboard Adapter Module
Easily interface legacy PS/2 keyboards or mice with your Arduino, Raspberry Pi, or other microcontroller projects using this PS/2 Keyboard Adapter Module. Designed to simplify prototyping and integration, this breakout board provides a clean, reliable way to connect standard PS/2 peripherals without cutting or stripping cables.

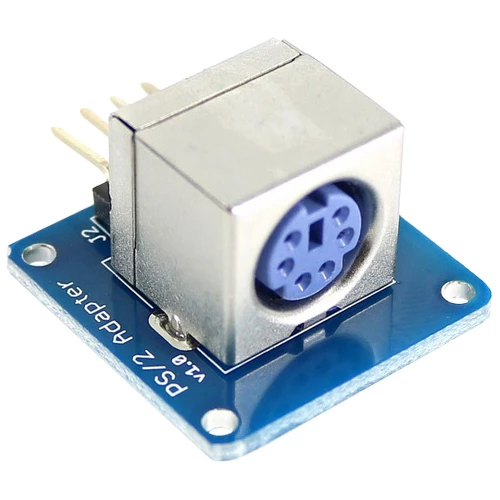

It features a mini-DIN PS/2 connector and four convenient mounting holes for secure installation. Compatible with the PS2Keyboard library, this module allows you to read keystrokes and build user input systems quickly and effectively. Perfect for retro computing projects, custom keypads, or embedded systems that need a simple, tactile interface.
Quick Spec
- Interface: Standard PS/2 mini-DIN 6-pin
- Operating Voltage: 4.75V – 5.25V DC
- Current Consumption: ~100mA
- Communication Protocol: PS/2 Serial
- Clock Frequency: 10 – 33kHz
- Mounting: 4 x 2mm screw holes
- Compatible with: Arduino (via PS2Keyboard Library), microcontrollers with digital I/O pins
Dimensions

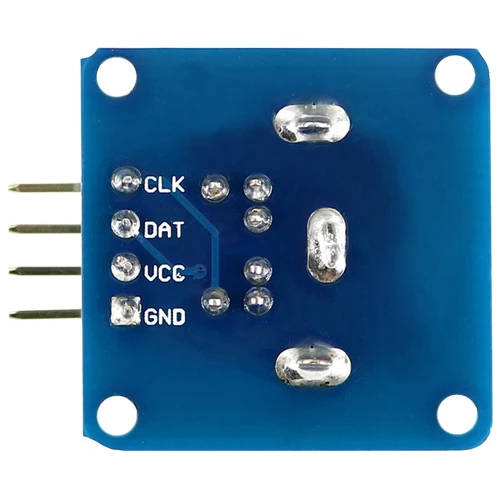

Pinout
| Pin | Name | Function | Correspond to the Grove Interface |
|---|---|---|---|
| 1 | +DATA | Data | DATA |
| 2 | NC | Reserved | - |
| 3 | GND | GND Line | GND |
| 4 | Vcc | +5DCV | VCC |
| 5 | +CLK | Clock frequency | CLK |
| 6 | NC | Reserved | - |
Shipping List
- 1 x PS/2 Keyboard Adapter Module
PS/2 Keyboard Adapter Module
- Brand: Generic
- Product Code: PS2-6P-ADAPTER
- Weight: 0.006kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | AA188 |
| Stellenbosch | In Stock | A0187 |
We ship free of charge between branches to complete your order.
-
R26.00 (Inc Tax: R29.90)
