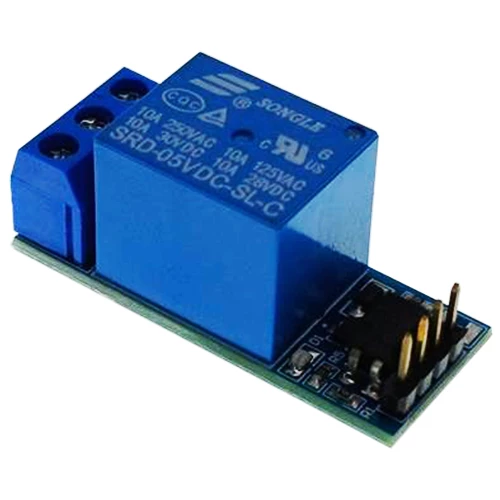

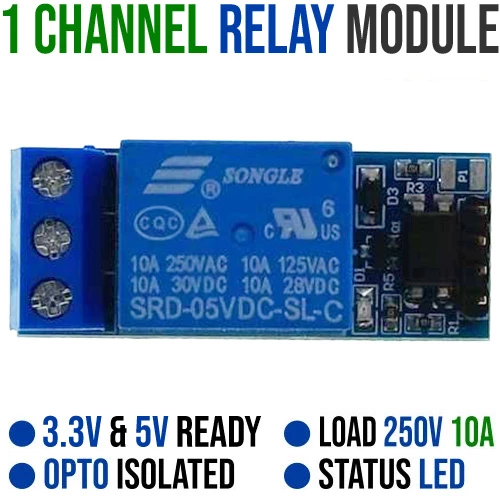

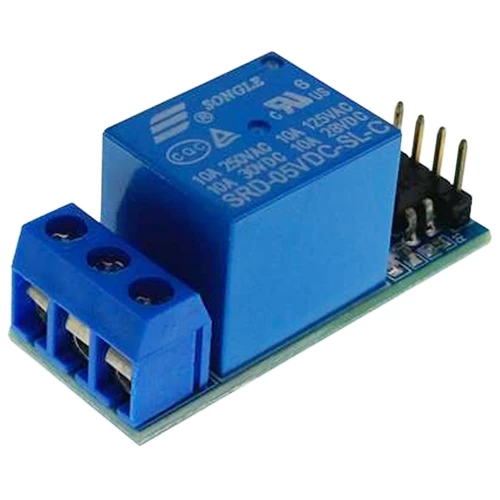

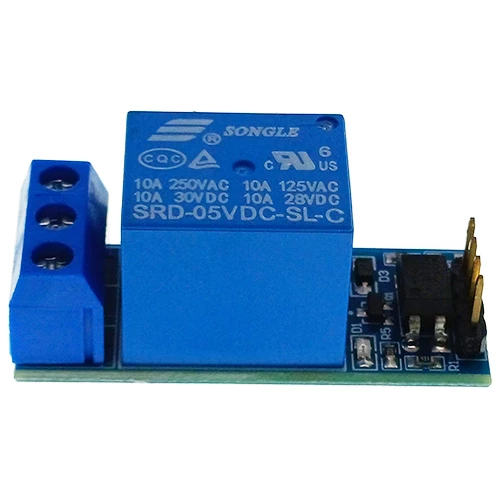

Single Channel Relay Module Opto-Isolated 3.3V & 5V Logic 10A Load
The Relay 1 Channel Module (Opto-Isolated) is a compact, high-quality switching module designed for direct control via 3.3V or 5V logic systems such as Arduino, ESP32, or Raspberry Pi. Featuring an onboard 817C opto-isolator, the module ensures electrical isolation between the control circuit and the high-voltage load for safer operation and reduced interference.
Capable of switching up to 10A loads at 250VAC or 30VDC, it’s ideal for controlling motors, lights, fans, and other high-power devices. The onboard LED indicator provides clear relay status feedback, making it a reliable choice for DIY automation, robotics, and industrial control projects.
Quick Spec
- Model: YS-1Relay
- Logic Voltage: 3.3V & 5V compatible
- Isolation: 817C Opto-Isolator per channel
- Relay Rating: 10A @ 250VAC / 10A @ 30VDC
- Control Signal: Active LOW
- Indicator: Onboard LED for relay status
- Control Interface: Directly compatible with Arduino, ESP32, Raspberry Pi, etc.
- Dimensions: ~40.8 × 16.1 × 17.4 mm

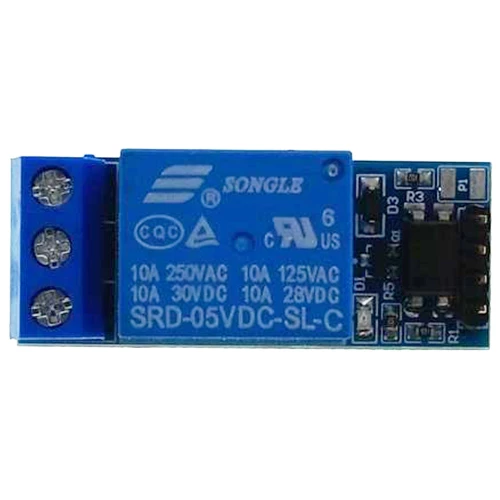

Board Layout

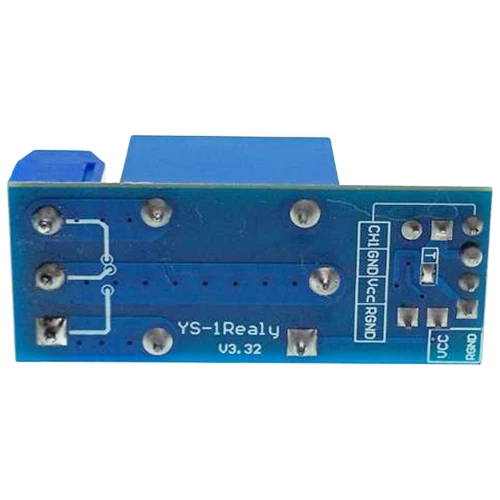

* GND and RGND is internally connected
Shipping List
- 1 x Single Channel Relay Module Opto-Isolated 3.3V & 5V Logic 10A Load
Single Channel Relay Module Opto-Isolated 3.3V & 5V Logic 10A Load
- Brand: Generic
- Product Code: REL-1CHAN-335V
- Weight: 0.014kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R24.00 (Inc Tax: R27.60)
