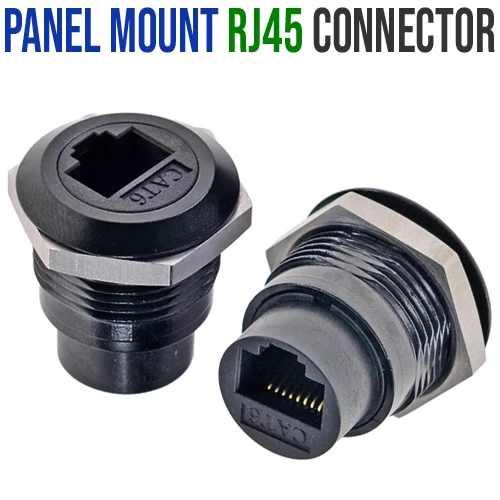

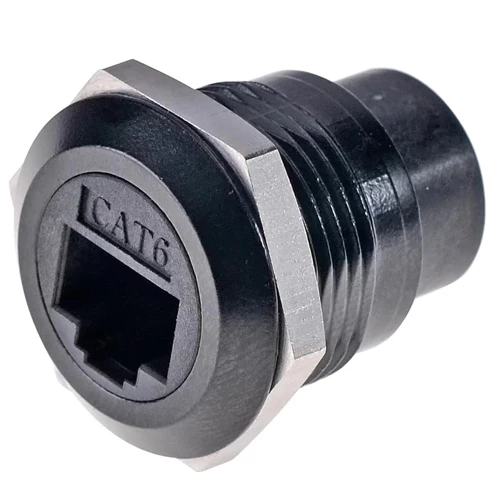

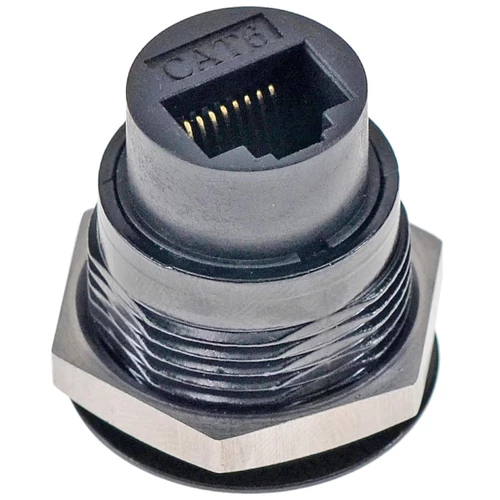

Panel Mount RJ45 Connector - Type B
The Panel Mount RJ45 Connector - Type B offers reliable, high-performance connectivity with dual-use 110 and LSA punching tools, simplifying installation and making operations more efficient. Built with phosphor bronze, nickel-plated connector pins, and gold-plated contacts, it ensures excellent conductivity and durability. The IDC clip, made from tinned phosphor bronze, is compatible with 22-26AWG cables, while the connector is rated for over 750 insertion cycles and 250 punching cycles, providing long-lasting performance. It withstands temperatures from -25ºC to 60ºC, making it suitable for a variety of environments.
Quick Spec
- Format: RJ45 to RJ45(pass through)
- DC Resistance: ≤300mΩ
- Contact Resistance: ≤20mΩ
- Dielectric Strength: 1000V (AC750V) for 1 minute, no breakdown or flashover
- Insulation Resistance: ≥1000MΩ
- Material: Phosphor bronze, nickel-plated connector pins, gold-plated contacts
- IDC Clip: Tinned phosphor bronze, suitable for 22-26AWG cables
- Insertion Duration: ≥750 times
- Punching Duration: ≥250 times
- Operating Temperature: -25ºC to 60ºC
- Net Weight: 15g
Dimensions
Shipping List
- 1 x Panel Mount RJ45 Connector - Type B
Panel Mount RJ45 Connector - Type B
- Brand: Generic
- Product Code: RJ45-PAN-TYPEB
- Weight: 0.015kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R59.00 (Inc Tax: R67.85)
