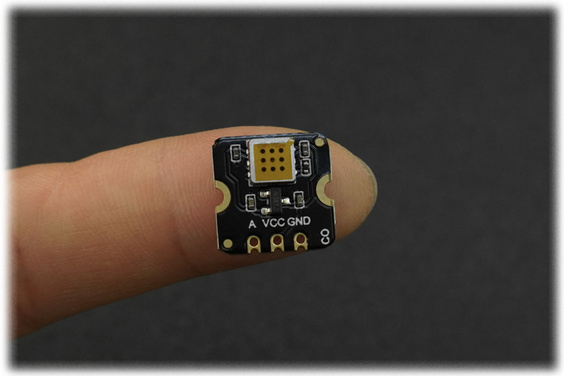

DF Robot Fermion: MEMS CO Carbon Monoxide Sensor
The DF Robot Fermion MEMS Carbon Monoxide (CO) Gas Detection Sensor is a compact, low-power solution for detecting carbon monoxide levels between 5-5000 ppm. Utilizing advanced MEMS technology, this sensor offers efficient performance with minimal heat generation, fast response and recovery times, and low energy consumption (under 20mA). Its small footprint (13x13x2.5mm) and durable build make it ideal for applications such as CO leak alarms, portable detectors, and monitoring in environments like petrochemical, metallurgy, and mining industries. Note: This sensor provides qualitative measurements only.
Quick Spec
- Gas Detected: CO
- Detection Range: 5-5000ppm
- Operating Voltage: 3.3-5V
- Operating Current: ＜20 mA
- Output Signal: Analog voltage
- Sensitivity: R0(in air)/Rs(in 150ppm CO) ≥ 3
- Operating Temperature: -10 - +50℃
- Operating Humidity: 15-90%RH (non-condensing)
- Lifespan: ≥5 years (in air)
- Dimensions：13 x 13 x 2.5mm
Wiring Diagram
Resources
Shipping List
- 1 x DF Robot Fermion: MEMS CO Carbon Monoxide Sensor
DF Robot Fermion: MEMS CO Carbon Monoxide Sensor
- Brand: DF Robot
- Product Code: SEN0564
- Weight: 0.007kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | B7 |
| Stellenbosch | Limited Stock | M61 |
We ship free of charge between branches to complete your order.
-
R114.00 (Inc Tax: R131.10)
