DF Robot HUSKYLENS V2 AI Vision Sensor

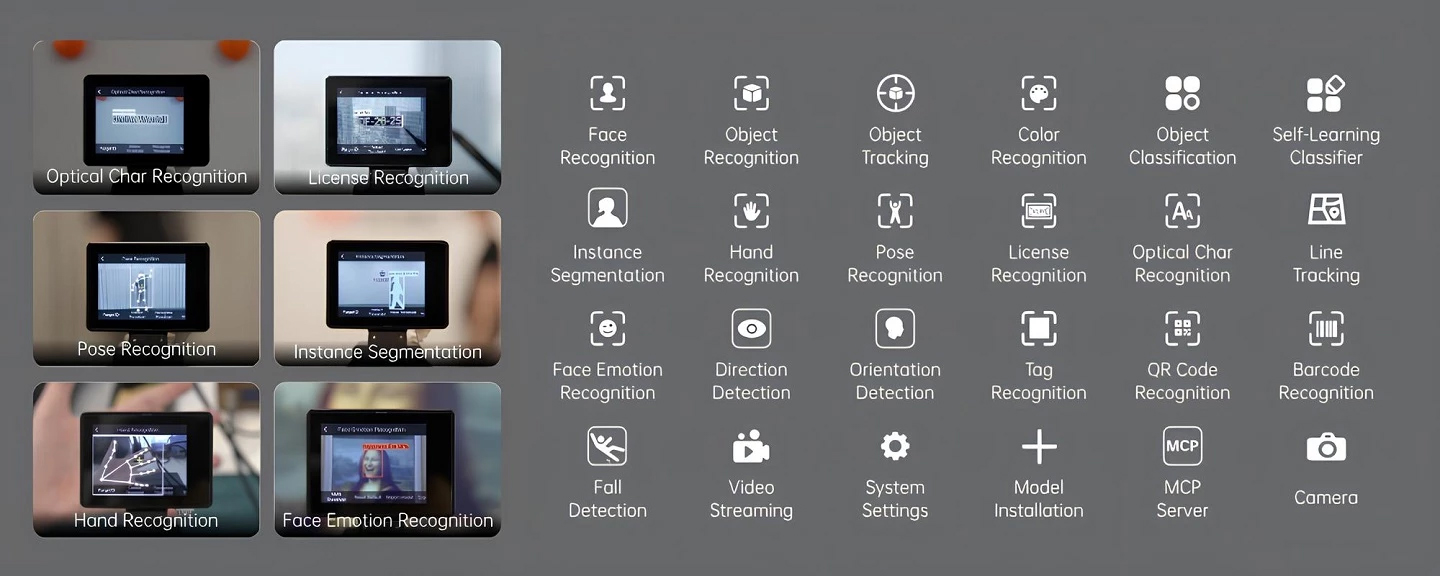

The DFRobot HUSKYLENS V2 is a powerful next-generation AI vision sensor designed to bring advanced machine vision capabilities to makers, educators, and developers. Powered by a dual-core 1.6GHz processor with a built-in 6 TOPS AI accelerator, it performs complex image recognition and processing directly on-device—delivering fast, low-latency results without relying on cloud computing. With over 20 built-in AI models, including face recognition, object tracking, and pose estimation, users can start building intelligent applications straight out of the box.



Equipped with a vibrant 2.4" IPS touchscreen, replaceable 2MP camera module, microphone, speaker, and onboard indicators, HUSKYLENS V2 offers a complete interactive platform for AI-driven projects. It also supports custom model deployment using YOLO, enabling tailored solutions for specific applications. With UART and I2C interfaces, along with optional Wi-Fi connectivity and real-time video streaming, it integrates seamlessly with platforms like Arduino, Raspberry Pi, and ESP32—making it ideal for robotics, automation, and smart device development.

Quick Spec

• Processor: Kendryte K230 Dual-Core 1.6GHz
• AI Performance: 6 TOPS
• Memory: 1GB LPDDR4
• Storage: 8GB eMMC
• Camera: 2MP (GC2093), up to 60FPS, replaceable module
• Display: 2.4" IPS Touchscreen (640×480)
• Interfaces: USB Type-C, I2C, UART (Gravity)
• Connectivity: Optional 2.4GHz Wi-Fi 6 module
• Audio: Built-in microphone and 1W speaker
• Power Supply: 3.3V – 5V
• Power Consumption: 1.5W – 3W
• Dimensions: 70 × 58 × 19 mm

Product Video

Resources

• Product Page
• Product Wiki
• GitHub / Technical Community
• RoHS
• EMC Attestation of Conformity
• FCC Part 15B sDoC

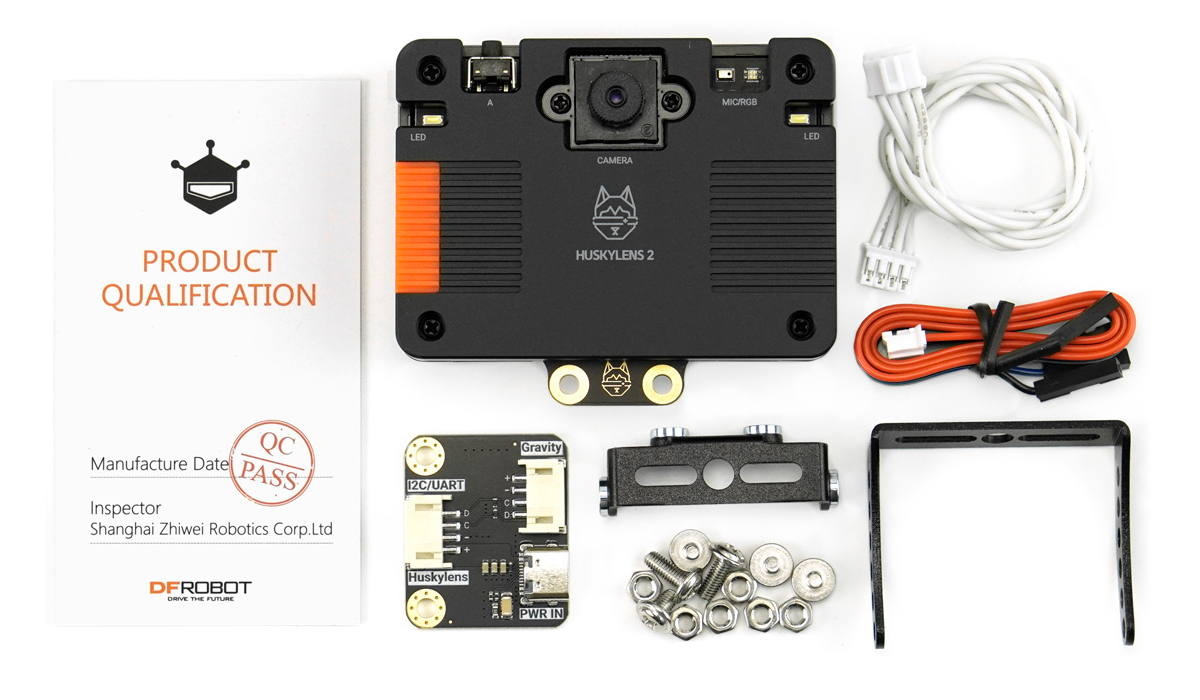

Shipping List

• 1 x DF Robot HUSKYLENS V2 AI Vision Sensor
• 6 x M3 Screws
• 6 x M3 Nuts
• 1 x Mounting Bracket
• 1 x Heightening Bracket
• 1 x Gravity-4P Sensor Connector Cable (30cm)
• 1 x Dual-Plug PH2.0-4P Silicone Cable (20cm)
• 1 x Power Adapter Board
