DF Robot Calibrated Laser Quantitative Methane Sensor
The DF Robot Calibrated Laser Quantitative Methane Sensor is a lab-grade solution designed for researchers and engineers who require precise, reliable methane (CH₄) measurements. Utilizing advanced Tunable Diode Laser Absorption Spectroscopy (TDLAS) technology, it delivers interference-free, quantitative data in %LEL, eliminating the inaccuracies commonly associated with traditional gas sensors. With high accuracy and stable long-term performance, it is ideal for scientific research, environmental monitoring, and industrial analysis.
Engineered for ease of use, this sensor supports plug-and-play integration with Arduino and Raspberry Pi, while optional compatibility with the Gravity SCI DAQ module enables no-code data logging and one-click export to Excel or MATLAB. With zero cross-gas interference, fast response time, and a lifespan exceeding 10 years without recalibration, it is perfectly suited for continuous monitoring in demanding environments such as biogas systems, chemical processes, and environmental field studies.
Quick Spec
- Detection gas: Methane (CH₄)
- Detection range: 3–100% LEL
- Technology: TDLAS (laser-based, interference-free)

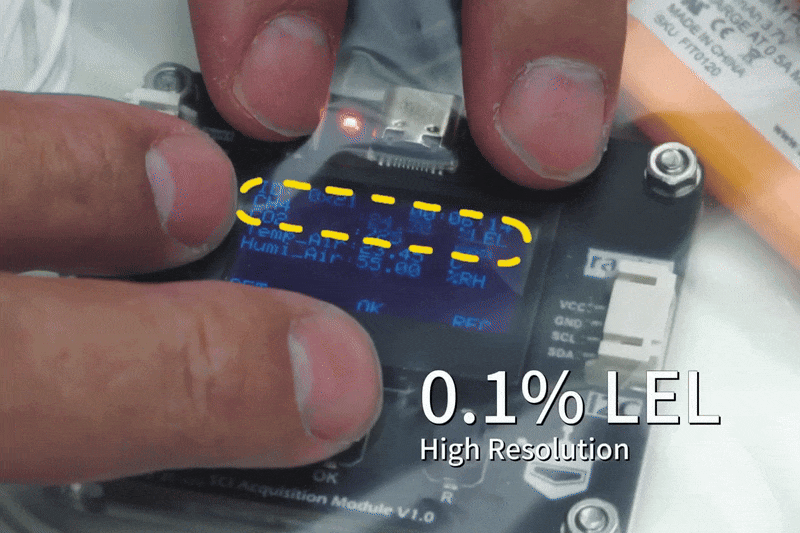

- Resolution: 0.1% LEL
- Accuracy: ±2% to ±5% LEL (range dependent)
- Supply voltage: 3.3–5 V
- Operating current: <300 mA
- Warm-up time: 15 s
- Response time: T90 <15 s
- Output: I2C and UART
- Operating temperature: -13°C to 58°C
- Operating humidity: 0–95% RH (non-condensing)
- Operating pressure: 80–115 kPa
- Lifespan: >10 years (no drift, no recalibration required)
Product Video

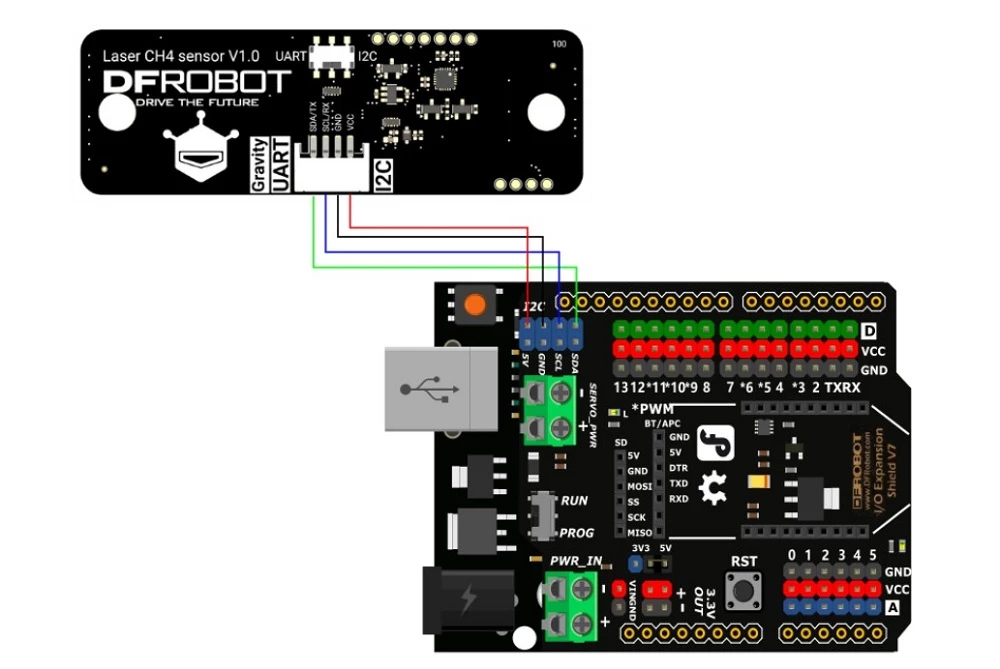

Wiring Diagram
Resources

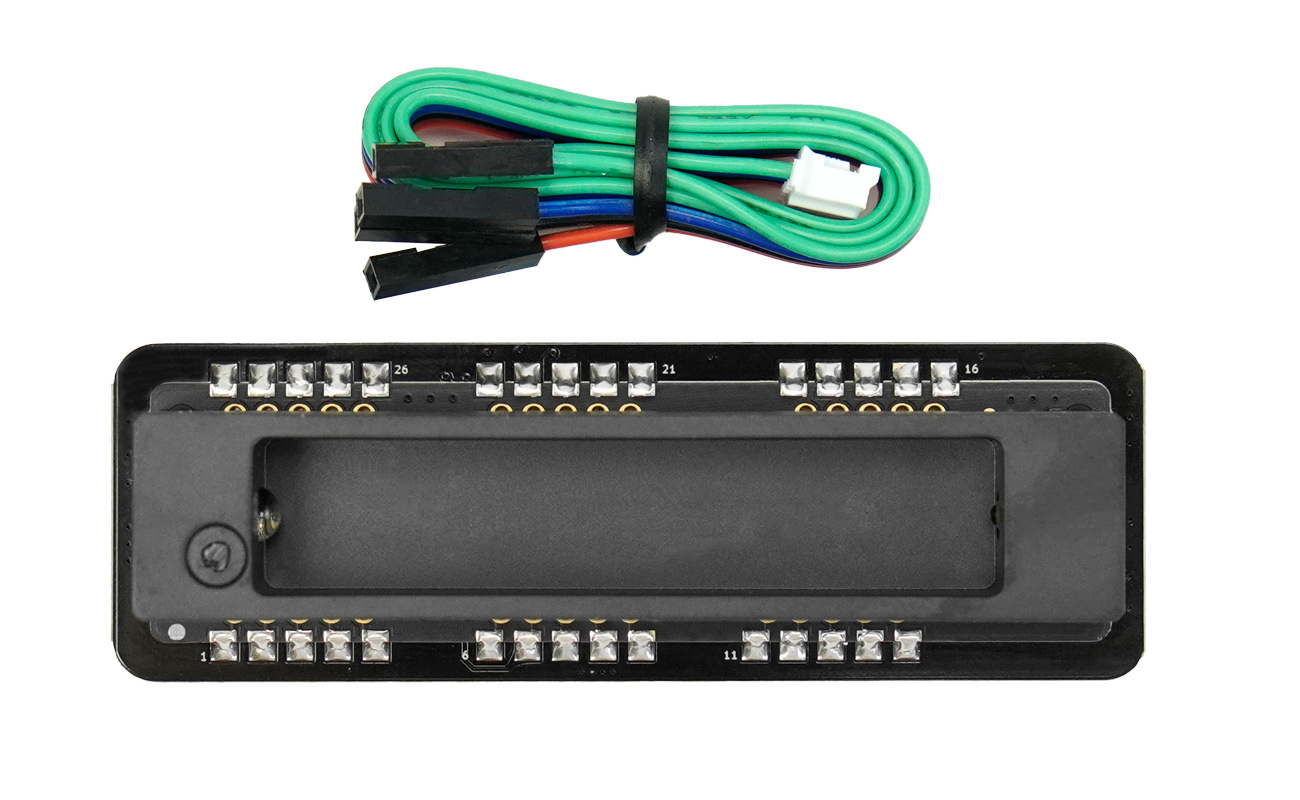

Shipping List
- 1 x Gravity: Laser CH4 Sensor
- 1 x Gravity 4 pin sensor cable
DF Robot Calibrated Laser Quantitative Methane Sensor
- Brand: DF Robot
- Product Code: SEN0654
- Weight: 0.046kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | H18-05 |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R1,218.00 (Inc Tax: R1,400.70)
