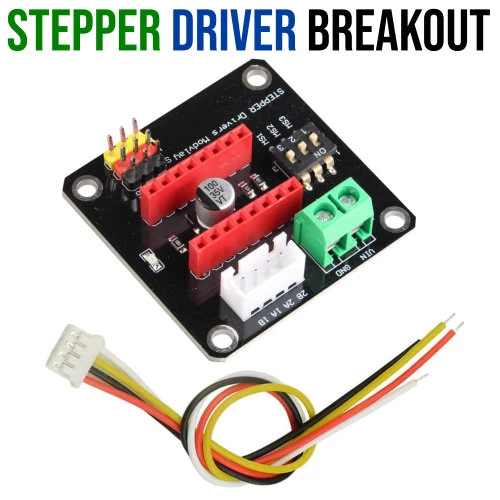

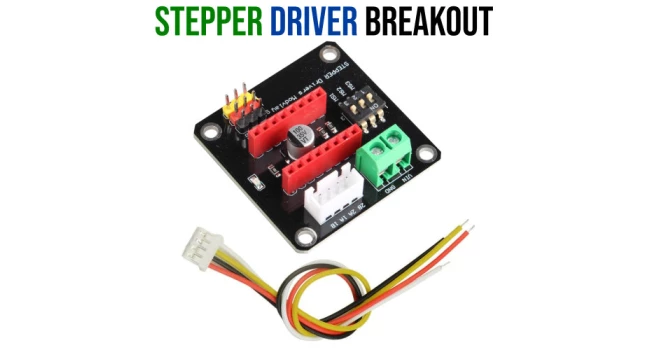

Stepper Motor Breakout Module
This stepper motor breakout module has an on-board DIP switch, so you can easily adjust the drive segments as you require. Terminal power connector for easy drive power connection. .
Quick Spec
- Size: 43 x 43 x 15mm
- Fixed: 3mm
- Pitch: 1400 x 1400mil (35.56 x 35.56mm)
- Logic voltage: 5V
- Input voltage: 12-24V
- Ports: Digital
- Interface: Direction, enable, speed
- Applicable module: A4988, DRV8825

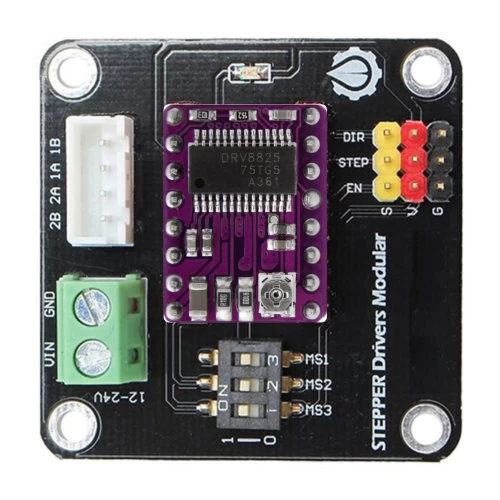

How to install DRV8825 Module
Shipping List
- 1 x Stepper Motor Breakout Module
- 1 x 4-Pin JST-XH cable - 20cm
Stepper Motor Breakout Module
- Product Code: SEP-MOD
- Weight: 0.011kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | DD114 |
| Stellenbosch | In Stock | Z1137 |
We ship free of charge between branches to complete your order.
-
R38.00 (Inc Tax: R43.70)
