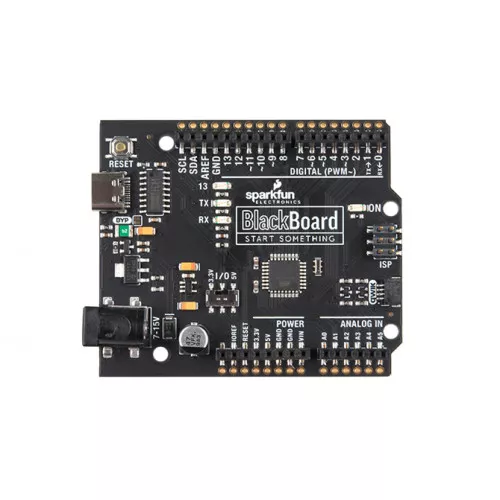

SparkFun Blackboard C - Qwiic

The BlackBoard from SparkFun is everything you need in an Arduino Uno with many extra perks. BlackBoard has all of the hardware peripherals you know and love: 14 Digital I/O pins with 6 PWM pins, 4 Analog Inputs, UART, and SPI with a handful of external interrupt pins. BlackBoard even has an SMD ISP header to connect SPI pins to shields.

For more advanced users, SparkFun have added an I/O voltage switch also known as the Red Squirrel switch. Now you can select the GPIO voltage between 3.3V or 5V with just your finger. This is extremely handy if you have a shield or 3.3V sensitive devices, such as an SPI interface, that needs protecting.

The SparkFun BlackBoard comes fully tested with the Optiboot bootloader and can be easily programmed with the 'Arduino/Genuino Uno' option from within Arduino. You can power the BlackBoard over USB or through the barrel jack. The on-board power regulator can handle anything from 7 to 15VDC. The barrel jack and USB connection can support up to 2A.

Quick Spec

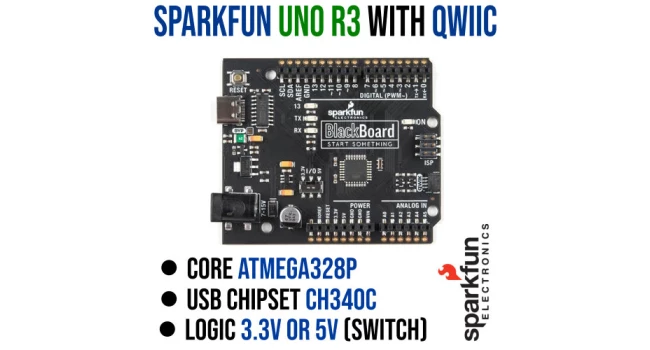

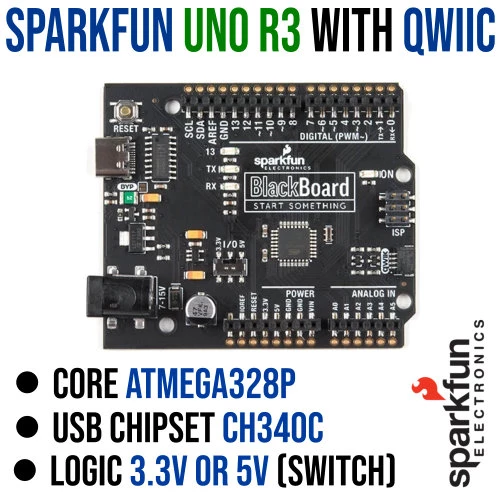

  • ATmega328P microcontroller with Optiboot (UNO) Bootloader
  • CH340C USB to Serial IC
  • Reinforced and reversible USB C connector
  • Built-in Qwiic connection
  • Input voltage: 7-15V
  • 0-5V outputs with 3.3V compatible inputs
  • 14 Digital I/O Pins (6 PWM outputs)
  • 6 Analog Inputs
  • SP Header
  • 32k Flash Memory
  • 16MHz Clock Speed

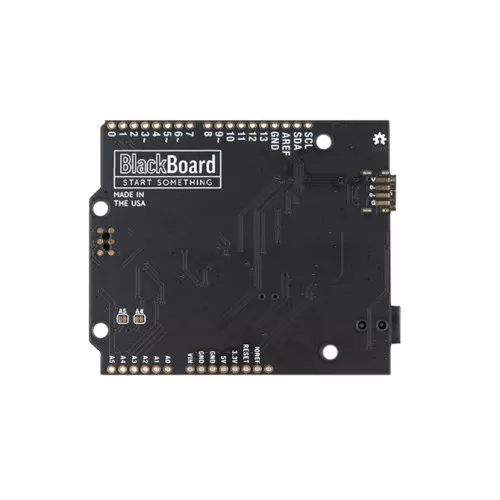

  • Flat bottom, all SMD construction
  • Weight: 23g

Resources

Shipping List

  • 1 x SparkFun Blackboard C - Qwiic


SparkFun Blackboard C - Qwiic

  • Brand: Sparkfun
  • Product Code: SPX-16282
  • Stock

    Warehouse Stock Status Location
    Centurion In Stock UR012
    Stellenbosch In Stock L98
  • R478.00 (Inc Tax: R549.70)
