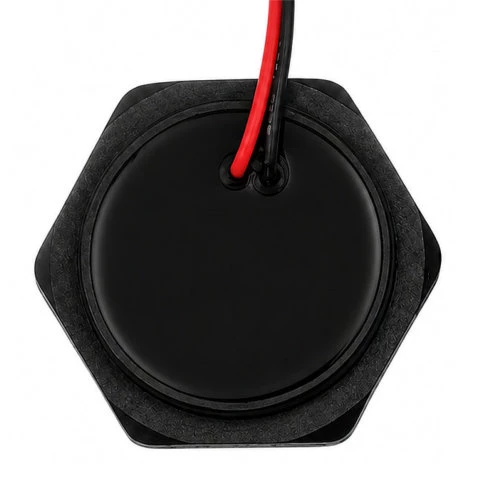

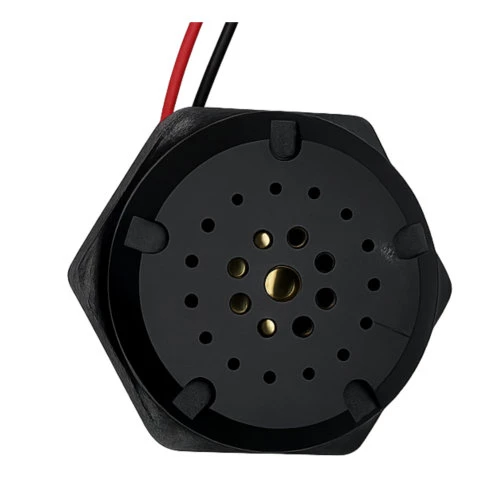

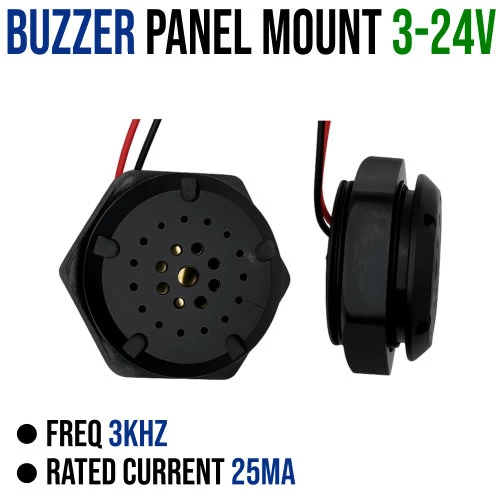

Buzzer Panel Mount 3-24V

This panel mount Piezo buzzer offers a broad voltage range, loud and continuous tone and low power consumption.

Operating between 3 -24V, the buzzer draws only a 25 mA max current. As a result, they're compatible with most consumer appliances and are very energy efficient. They resonate at 3kHz and can be heard clearly from a distance, even in noisy environments. This all comes in a space-saving design measuring 37 mm in diameter. As they're panel mounted, the buzzers are simple to install.

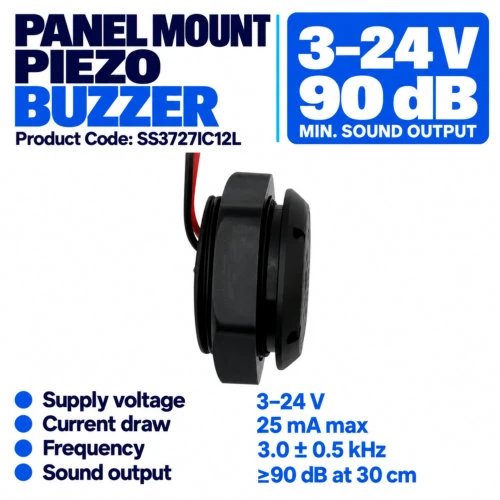

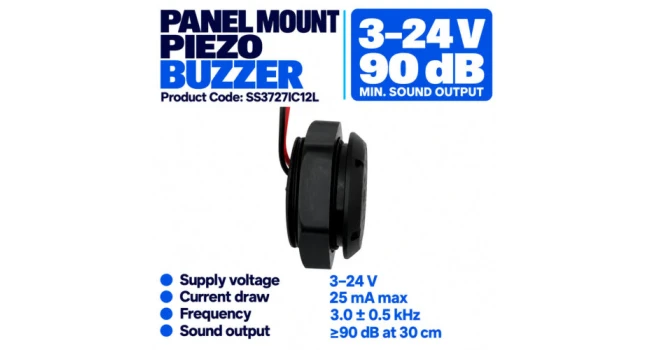

Quick Spec

  • Supply Voltage: 3-24V
  • Current Consumption: 25mAh (Max.)
  • Resonant Frequency: 3.0±0.5 kHz
  • Min. Sound Output at 30cm: ≥90 db
  • Operating Temperature: -20 ~ +70oC
  • Storage Temperature: -30 ~ +80oC
  • Threaded Dimensions: 32.5 x 14mm
  • Dimensions: 37 x 19.4mm

Shipping List

  • 1 x Buzzer Panel Mount 3-24V


Buzzer Panel Mount 3-24V

  • Brand: Generic
  • Product Code: SS3727IC12L
  • Weight: 0.023kg
  • Stock

    Warehouse Stock Status Location
    Centurion In Stock S4-02
    Stellenbosch In Stock A0276

    We ship free of charge between branches to complete your order.

  • R115.00 (Inc Tax: R132.25)
