• Description

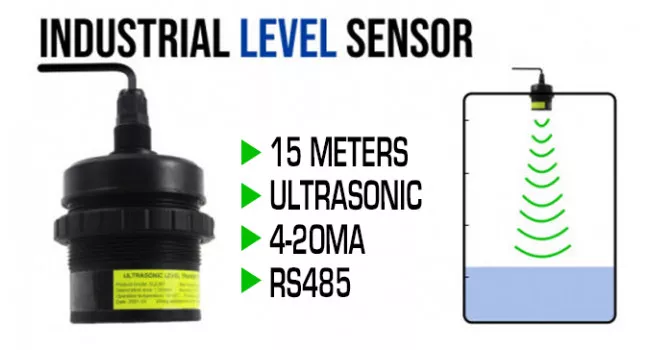

Ultrasonic Liquid Level Sensor 15M - RS485 and 4-20mA Output

The ultrasonic level sensor emits a high frequency acoustic pulse from its transducer. The pulse travels through the air gap, reflects against the liquid surface and returns to the transducer. The ultrasonic level sensor measures the pulse time of flight and converts this into level height or distance.

The SUL801 ultrasonic liquid level sensor is a very practical level measuring sensor with simple installation and convenient on-site commissioning. Not affected by the measured medium. It can measure the liquid level of various mediums with an accuracy of 0.5%. It uses SMD components and ASC chip, which makes the circuit compact and concise. The circuit board is plated and has high stability and long-term reliability. Meanwhile, the shell uses NLEPF synthetic materials with sturdy texture and good acoustic property. The transducer can be used in most working condition sites.

SUL801 Pin-OUT

Quick Spec

• Operating Voltage: 24VDC @ 300mA
• Measuring Range: 5m (max.)
• Detect Blind Area: <300mm
• Accuracy: ±0.5% (@25°C)
• Output Signal: 4-20mA & RS485 (Modbus)
• Beam Angle: 15°
• Ranging Distance: 15 meters
• Operating Temperature: -10 ~ +50°C
• Protection: IP66
• Lead Length: ±1m
• Dimensions: 80 x 68mm
• Net Weight: 431g

SUL801 Connection 4-20mA

Dimensions

Resources

• Datasheet

Shipping List

• 1 x Ultrasonic Liquid Level Sensor 15M - RS485 4-20mA
• 1 x User Manual

Ultrasonic Liquid Level Sensor 15M - RS485 and 4-20mA Output

• Brand: Generic
• Product Code: SUL801-15M
• Weight: 0.431kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	In Stock	CC202
Stellenbosch	New Product Arriving Soon
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R7,138.00 (Inc Tax: R8,208.70)
