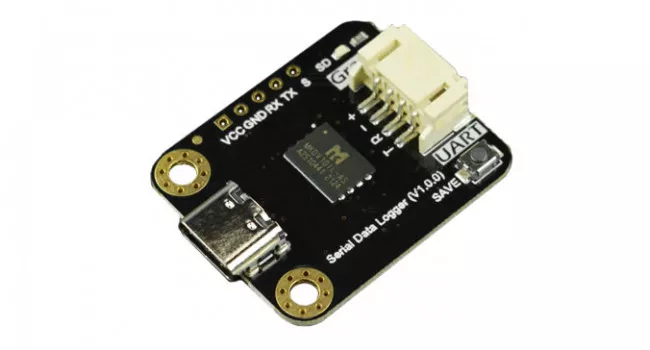

DF Robot Serial Data Logger

Compared to the old MicroSD Card Module, this Gravity: Serial Data Logger can store data more conveniently, and supports direct data printing through serial port without additional codes.

The Serial Data Logger provides onboard 128MB Flash memory, no more TF card required. It comes with a USB function, which means you can directly connect it to a PC computer to read the stored files without using a card reader. Meanwhile, with the onboard LED indicator, data writing status can be viewed visually. And the onboard SAVE key makes it easier to store data into separate files.

Quick Spec

• Supply Voltage: 3.3V~5V
• Operating Current: 32mA
• USB Protocol: USB2.0
• Operating Temperature Range: -30℃~85℃
• Operating Humidity Range: 5%RH~85%RH
• Dimension: 32 x 27mm
• Net Weight: 14g

Wiring Diagram

Sample Code

Write data to the module through Serial.print, save a file every once in a while.

#define SPIN 6  //Connect to the module Pin S, trigger to save files at low level
uint16_t i = 0;

void setup(void)
{
  Serial.begin(9600);
  delay(2000);  //To aviod data lost, delay a period of time to wait for the module to start
  pinMode(SPIN, OUTPUT);
  digitalWrite(SPIN, HIGH);
}

void loop(void)
{
  Serial.println(String(i));
  i++;
  if((i % 10) == 0){
    digitalWrite(SPIN, LOW);
    delay(500);
    digitalWrite(SPIN, HIGH);
  }
  delay(300);
}

Resources

• Product Page
• Product Wiki
• Schematic
• Mechanical Diagram

Shipping List

• 1 x DF Robot Serial Data Logger

DF Robot Serial Data Logger

• Brand: DF Robot
• Product Code: TEL0147
• Weight: 0.014kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	No Stock
Stellenbosch	No Stock
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R242.00 (Inc Tax: R278.30)
