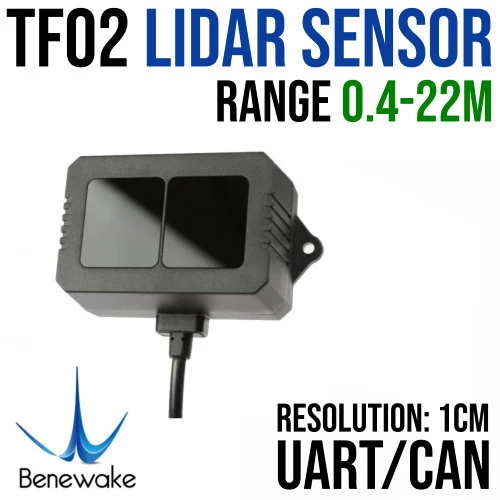

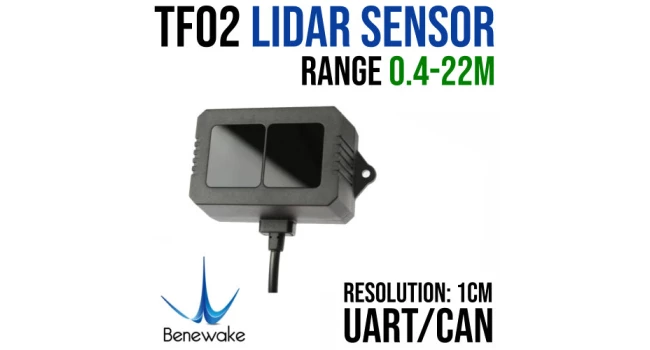

TF02 LiDAR Sensor Range 22m

TF02 is a newly developed product based on the widespread application experience of TF01. It possesses a higher performance and is applicable to more fields. On the basis of preserving multiple advantages from the last generation, TF02 highly optimizes the energy system, product structure, fusion algorithm, and shell material so as to achieve a 22-meter-long range and a more stable ranging performance. Combining an innovative production process and multiple software and hardware optimizations, Benewake upgrades LiDAR truly to a consumer level and makes it applicable in numerous fields. Based on the ToF (Time of Flight) principle, the product can work under 100k Lux high light outdoors. In tandem with the original optical system design and fusion algorithm, the product can resist disturbance from ambient light, airflow, and electrons,resulting high data reliability.

Quick Spec

  • Operating Distance indoor:0.4m-22m
  • Operating Distance outdoor:0.4m-10m
  • Measuring Speed:100Hz(Maximum: 500Hz)
  • Accuracy:Centimeter Level
  • Weight: 52g
  • FOV: 3°
  • Input Voltage:5v
  • Peak Current:3A
  • Power:≤1W
  • Communication Protocol: UART/ CAN
  • Protection Grade: IP65
  • Operating Temperature: -10℃ ~ 60℃
  • Photobiological Safety: Pass

Resources

Shipping List

  • 1 x TF02 LiDAR Sensor Range 40cm


TF02 LiDAR Sensor Range 22m

  • Brand: Benewake
  • Product Code: TF02
  • Weight: 0.165kg
  • Stock

    Warehouse Stock Status Location
    Centurion Limited Stock FRONT 5
    Stellenbosch In Stock Z0012

    We ship free of charge between branches to complete your order.

  • R1,589.00 (Inc Tax: R1,827.35)
