Universal 2A LiPo Charger, 4.2V / 7.4

TP5100 is a step-down switching double 8.4V / 4.2V single lithium battery charge management chip. QFN16 ultra small package with its simple external circuit, so that the large current charging management application TP5100 ideal is for portable devices. Meanwhile, TP5100 has a built-in input overcurrent, undervoltage protection, over temperature protection, short circuit protection, battery temperature monitoring, and reverse battery protection. The Unicersal LiPo charger has a wide input voltage 5V-18V, provides pre-charge from battery trickle charging, provides constant current, and constant-voltage three phase. The pre-charge current trickle charge is adjusted through an external resistor. It has a maximum charging current of 2A. TP5100 uses a frequency of 400kHz for switching modes which makes it possible to use smaller peripheral devices, and still maintain a smaller amount of heat with the large current charging. TP5100 has a built-in power PMOSFET, anti-intrusion circuit, so there is no need peripheral anti-intrusion protection Schottky diode.

Quick Spec

  • Double 8.4v / 4.2v lithium rechargeable single
  • Programmable Charge Current. 0.1A - 2A
  • Programmable steady precharge current 10% -100%
  • Wide Operating Voltage: 18V
  • Red and green LED charge status indicator
  • Chip temperature protection, overcurrent protection, undervoltage protection
  • Battery temperature protection, reverse battery shutdown, short circuit protection
  • Switching Frequency: 400KHz (usable inductance 20uH and more)
  • PWR_ON Power battery for switching control
  • Static Input Supply Voltage (VlN): 18V
  • BAI: -8.4V-20V
  • BAT Short-Circuit Duration: Continuous
  • Operating Environment Temperature Range: -40°C -85°C
  • Storage Temperature Range: -65°C – 125°C
  • Dimensions: 25 x 17.3mm
  • Weight: 3g

Board Layout

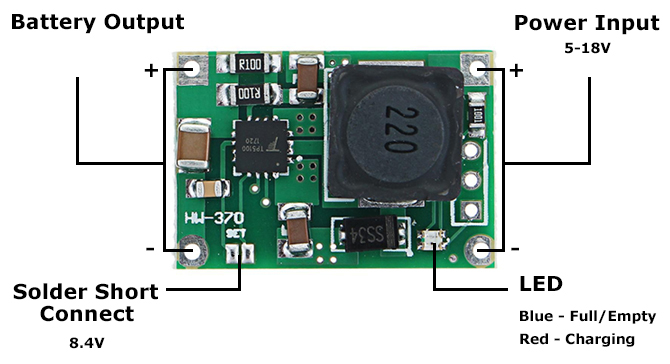

TP5100-005

Resources

Shipping List

  • 1 x Universal 2A LiPo Charger, 4.2V / 7.4


Universal 2A LiPo Charger, 4.2V / 7.4

  • Brand: Generic
  • Product Code: TP5100
  • Weight: 0.004kg
  • Stock

    Warehouse Stock Status Location
    Centurion In Stock FX0-02
    Stellenbosch In Stock Z8065

    We ship free of charge between branches to complete your order.

  • R69.00 (Inc Tax: R79.35)
