USB-A Panel Mount Screw Connector – 4 Wire (IP65)
This USB-A panel mount connector provides a simple and reliable way to add a USB pass-through connection to enclosures, panels, or project housings. Designed for quick installation, it fits a standard 22 mm mounting hole and secures firmly using the supplied screw-on plastic nut—no custom cut-outs or filing required.
Featuring a sealed IP65-rated front face, this connector offers protection against dust and water ingress, making it suitable for industrial, automotive, and outdoor applications. The 4-wire pigtail supports USB 2.0 power and data transmission, allowing easy integration into DIY electronics projects, control panels, and embedded systems.
Quick Spec
- Connector Type: USB Type-A (panel mount)
- Wiring: 4-wire pigtail (USB 2.0)
- Protection Rating: IP65 (front panel)
- Mounting Hole Diameter: 22 mm
- Insertion Force: 5–20 N
- Pull-out Force: 8–20 N
- Rated Voltage: up to 20 V
- Service Life: ≥10,000 insertions
- Operating Temperature: −25 °C to +85 °C
- Lead Length: approx. 150 mm
- Connector Dimensions: 28.5 × 33.3 mm

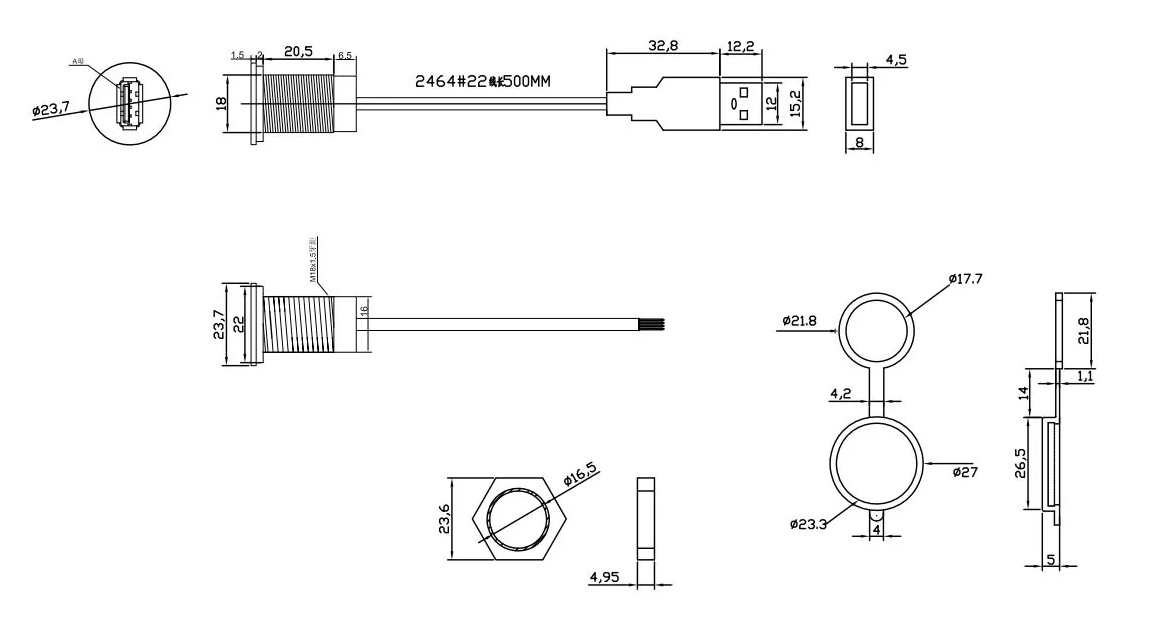

Dimensions
Shipping List
- 1 x USB-A Panel Mount Screw Connector – 4 Wire (IP65)
USB-A Panel Mount Screw Connector – 4 Wire (IP65)
- Brand: Generic
- Product Code: USBA-TYPE-B
- Weight: 0.01kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | UA025 |
| Stellenbosch | In Stock | Z5024 |
We ship free of charge between branches to complete your order.
-
R38.00 (Inc Tax: R43.70)
