USR Industrial CAN to Ethernet Converter

The USR Industrial CAN to Ethernet Converter facilitates seamless data communication between CAN and network servers. With two CAN ports and one Ethernet port, TCP/IP protocol, and bidirectional transmission capabilities, it extends the CAN network to Ethernet and RS485. Featuring industrial-grade temperature resistance (-40~85℃) and robust protections, this converter ensures reliable connections in harsh environments. Ideal for applications requiring secure data transfer between CAN-bus and Ethernet.

Quick Spec

• Working Voltage: 5 ~ 36VDC
• Working Current:
Average: 26mA@36V
Average: 56mA@12V
Average: 124mA@5V

• Power Supply Protection: level 3 surge & group pulse
• Ethernet Interface: RJ45, 10/100Mbps, support Auto-MDI/MDIX
• Ethernet Interface Protection: 1.5KV electromagnetic isolation
• Serial Port: RS485
• Serial Port Baud Rate: 600~115.2K (bps)
• CAN Baud Rate: 10K~1M (bps)
• CAN Work Mode: Basic, loopback
• CAN Protection: Power supply isolation, signal isolation
• Network Protocol: IPV4, TCP/UDP
• How to get IP: Static IP, DHCP
• Configuration Method: Web Server, serial/network AT command
• TCP Server Connection: Support at most four TCP Client connections; serial server only support one Client connection
• CAN Receiving Capability: 8000 frames every second
• CAN Transmitting Capability: 8000 frames every second
• Network Cache:
Transmitting: 16K bytes
Receiving: 16K bytes

• CAN Cache:
Transmitting: two hundred complete data packets
Receiving: two hundred complete data packets

• Serial Cache:
  Transmitting: 2K bytes
  Receiving: 2K bytes

• Heartbeat Packet:
CAN: Support user editable heartbeat packet(CAN data packet that conforms to transparent transmission protocol).
Serial Port: Support user editable heartbeat packet

• Identity Packet:
CAN: Support user editable, MAC, USR Cloud identity packet.
Serial port: Support user editable, MAC, USR Cloud identity packet

• Average Transmission Delay: <20 ms
• Working Temperature: -40 ~ +85℃
• Storage Temperature: -40 ~ 105℃
• Working Humidity: 5~95%RH
• Storage Humidity: 5~95%RH
• Dimensions: 96.5 x 94 x 25mm

Dimensions

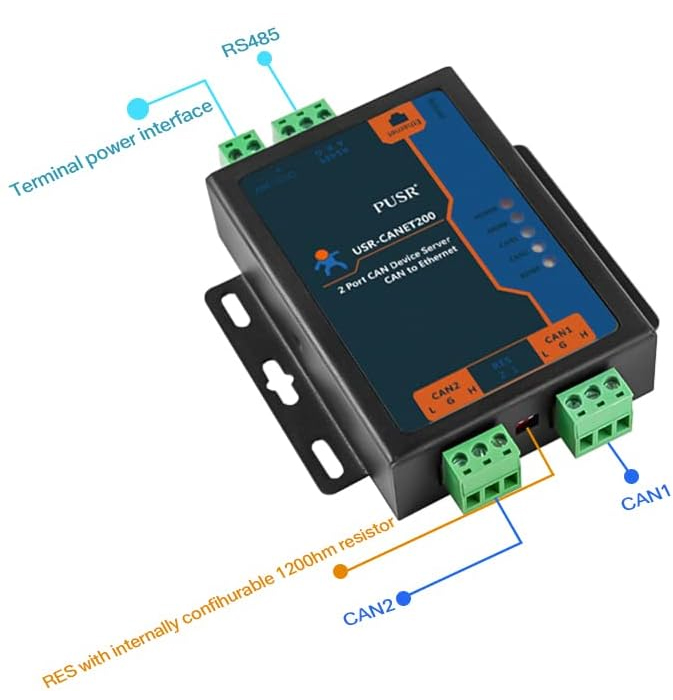

Interface

Resources

• Product Page
• User Manual
• Datasheet
• Setup Software

Shipping List

• 1 x USR Industrial CAN to Ethernet Converter
• 1 x Power Adapter
