Wave Dual Motor Driver for PI

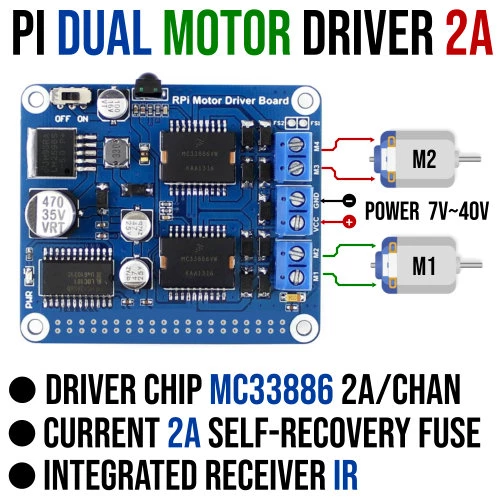

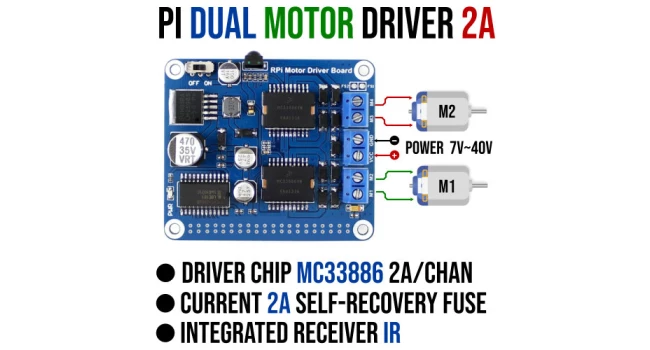

The RPi Motor Driver Board gives your Pi the ability to drive two DC motors OR one stepper motor. It's an ideal choice to DIY mobile robot based on Raspberry Pi.

W11820_005

Quick Spec

  • Supports Raspberry Pi A+/B+/2B/3B/3B+
  • Freescale H-bridge driver MC33886, controls DC motors to turn in both directions
  • Onboard 5V regulator, provides power to Raspberry Pi
  • Onboard IR receiver, used for remote control robot
  • Multi protection circuit, excellent stability
    • 2A self-recovery fuse, keep your Pi safe
    • Driver chip features Short-Circuit Shutdown for Large Output Current, Undervoltage Disable Function
    • Reversed polarity protection for motor output
    • Anti-reverse diode for power supply
  • Power input range: 7V~40V
  • Single motor output current: up to 5A
  • Power supply current for Raspberry Pi: up to 2A

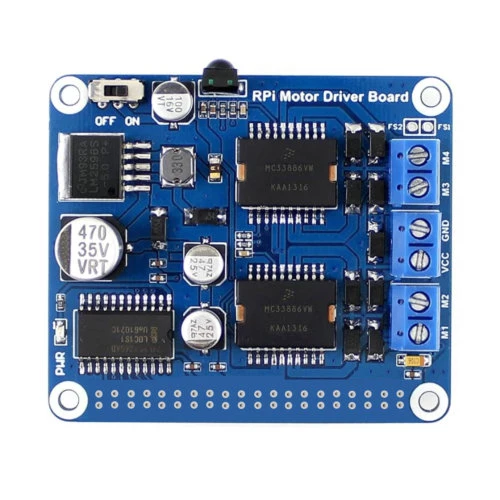

Board Layout

W11820_002

  1. Raspberry Pi GPIO interface: for connecting Raspberry Pi
  2. Motor screw terminal: for connecting motors
  3. External power input
  4. 74LVC4245AD: voltage level conversion chip, buffer device
  5. MC33886: motor driver chip
  6. LM2596-5.0: 5V regulator
  7. Power indicator
  8. Raspberry Pi power selection
    • OFF: Raspberry Pi powers the Motor Driver Board
    • ON: Motor Driver Board powers the Raspberry Pi
  9. 2A self-recovery fuse
  10. IR receiver
  11. Schottky diodes: protects the motor driver
  12. Power supply anti-reverse diode

Dimentions

W11820_003

Resources

Shipping List

  • 1 x Wave Dual Motor Driver for PI
  • 1 x RPi screws pack (2pcs)


Wave Dual Motor Driver for PI

  • Brand: Waveshare
  • Product Code: W11820
  • Product Status : Active
  • Stock

    Warehouse Stock Status Location
    Centurion Limited Stock GG009
    Stellenbosch Limited Stock X SHELF 1
    Bulk Location No Stock

    We ship free of charge between branches to complete your order.

  • R479.00 (Inc Tax: R550.85)
