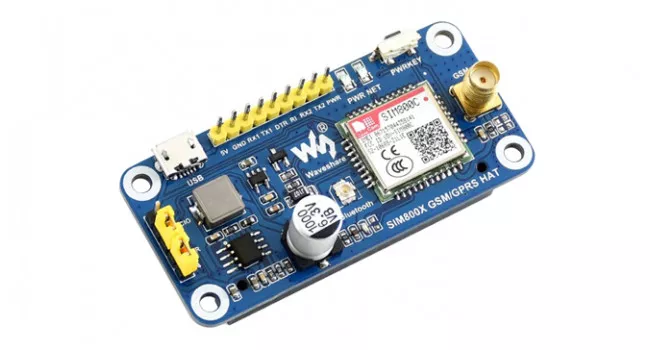

Wave SIM800 Pi GSM/GPRS/Bluetooth HAT
This is a handy, low power Raspberry Pi HAT which features multi communication functionalities: GSM, GPRS, and Bluetooth.
It allows your Pi to easily send messages, connect to wireless Internet, transfer data via Bluetooth, and so on.
Quick Spec
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- Supports SMS, GPRS, DTMF, HTTP, FTP, MMS, email, etc.
- Bluetooth 3.0, supports data transferring through Bluetooth
- UART interface, for connecting host control boards like Arduino/STM32
- Onboard voltage level translator, 3.3V by default, switch to 5V via jumper
- 2x LEDs for indicating the module working status
- SIM card slot for 1.8V/3V SIM card
- Baudrate auto detection (1200bps ~115200bps)
- Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
- Supports SIM application toolkit: GSM 11.14 Release 99
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
GSM/GPRS
- Band
- GSM 850/EGSM 900/DCS 1800/PCS 1900 MHz
- Quad-band auto search
- Compliant to GSM phase 2/2+
- Emitting power
- Class 4 (2W @ GSM 850/EGSM 900 MHz)
- Class 1 (1W @ DCS 1800/PCS 1900 MHz)
- GPRS connectivity
- GPRS multi-slot class 12 (default)
- GPRS multi-slot class 1~12 (configurable)
- GPRS data feature
- Downlink speed: max 85.6kbps
- Uplink speed: max 85.6kbps
- Coding schemes: CS-1\CS-2\CS-3\CS-4
- Supports PAP (Password Authentication Protocol) for PPP connection
- Supports PBCCH
- Supports USSD
- SMS
- Supports: MT/MO/CB/Text/PDU mode
- SMS storage: SIM card
- Bluetooth
- Integrates AT commands
- Compliant to Bluetooth specification3.0 + EDR
- Supports SPP, OPP, HFP/HSP, etc.
- Power supply: 5V (USB port OR pinheader)
- Logic level: 5V / 3.3V (default)
- Operating temperature: -40°C ~ 85°C
- Storage temperature: -45°C ~ 90°C
- Dimensions: 30.2 x 65mm
- Net Weight: 95g
Resources
Shipping List
- 1 x Wave SIM800 Pi GSM/GPRS/Bluetooth HAT
- 1 x GSM Antenna
- 1 x Bluetooth Antenna
- 1 x USB type A plug to micro plug cable
- 1 x RPi screws pack (2pcs)
Wave SIM800 Pi GSM/GPRS/Bluetooth HAT
- Brand: Waveshare
- Product Code: W16157
- Weight: 0.095kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R296.00 (Inc Tax: R340.40)
