Wave IoT GSM E-Paper Board for Pi

This is a Raspberry Pi IoT driver board for e-Paper raw panels. It allows getting text/image data from IoT clouds through NB-IoT/eMTC/EDGE/GPRS network connection, and then display them on the e-Paper.

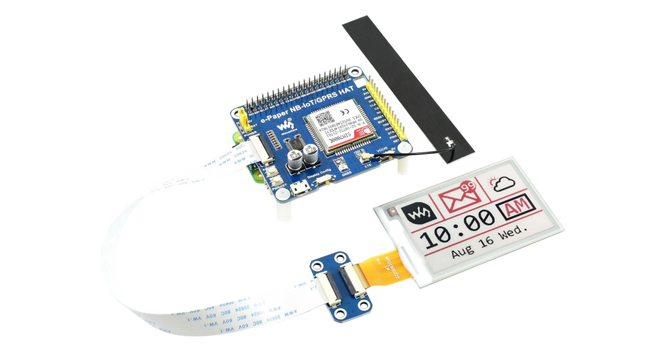

W17211-001

The HAT features an onboard SIM7000E module, controlled via UART, supports NB-IoT/eMTC/EDGE/GPRS communication. The e-paper interface is controlled via SPI, compatible with various Waveshare SPI e-Paper raw panels. The HAT also supports Raspberry Pi series boards using standard Raspberry Pi 40-PIN GPIO extension header.

Quick Spec

  • Communication interface: UART + SPI (4-wire SPI by default, switch to 3-wire SPI by soldering)
  • Communication Module: SIM7000E
  • Quad-Band LTE-FDD B3/B8/B20/B28
  • GPRS/EDGE 900/1800Mhz
  • GNSS (GPS, GLONASS, BeiDou, and Galileo, GNSS antenna is required and NOT included)
  • Support SIM card: NB-IoT specific card, or 1.8V/3V normal SIM card
  • Applicable region: China mainland, southeast Asia, Europe, Africa, Australia, etc. (for reference only, please check the supported bands according to your local service provider)
  • Power supply voltage: 5V
  • Logic level: 5V / 3.3V
  • Applicable battery: 3.7V lithium battery via PH2.0 connector (NOT included)
  • Dimensions: 56.5mm x 65mm
  • Weight: 43g

Board Layout

e-Paper-NB-Io-T-GPRS-HAT-intro
  1. SIM7000E communication module
  2. MP1482 power chip
  3. TXS0108E voltage translator
  4. TXB0104PWR voltage translator
  5. Raspberry Pi GPIO connector: for connecting Raspberry Pi
  6. SIM7000E and e-Paper control pins: for connecting with host control boards like STM32
  7. SIM Card Slot: for SIM cards with compatible bands
  8. e-Paper Interface: for connecting e-Paper, compatible with various Waveshare SPI e-Paper raw panels
  9. USB Port: control the SIM7000E module by AT commands through the USB port
  10. LTE Antenna Connector: connects LTE antenna for NB-IoT/eMTC/EDGE/GPRS communication
  11. GNSS Antenna Connector: connects GNSS antenna (IPEX connector, NOT included) for GPS/BeiDou/GLONASS/Galileo positioning
  12. 3.7V Lithium Battery Port: provides power to SIM7000E module or external 3.3V system
  13. LED Indicators
    • NET: network status indicator
    • Charge: charge indicator, light up when charging, off when fully charged
    • Warning: battery reverse connection warning
  14. PWRKEY Button: SIM7000E on/off
  15. BOOT Button: enable battery power supply
  16. SIM7000E Power Supply Selection: the SIM7000E can be powered from Raspberry Pi 5V or lithium battery 3.7V
  17. e-Paper Configuration: configured according to the connected e-Paper
    • A: for 1.54inch e-Paper, 2.13inch e-Paper, and 2.9inch e-Paper
    • B: for other e-Paper
  18. Operating Voltage Selection: 3.3V or 5V
  19. SPI Selection
    • 0: enable 4-wire SPI (default)
    • 1: enable 3-wire SPI

Resources

Shipping List

  • 1 x e-Paper NB-IoT/GPRS HAT
  • 1 x LTE full bands PCB antenna
  • 1 x e-Paper Adapter
  • 1 x 24PIN FFC
  • 1 x 2×20PIN female pinheader
  • 1 x RPi screws pack (2pcs)


Wave IoT GSM E-Paper Board for Pi

  • Brand: Waveshare
  • Product Code: W17211
  • Stock

    Warehouse Stock Status Location
    Centurion In Stock UR281
    Stellenbosch New Product Arriving Soon
  • R498.00 (Inc Tax: R572.70)
