• Description

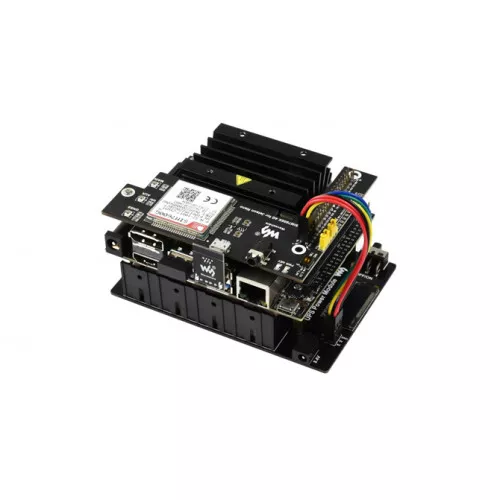

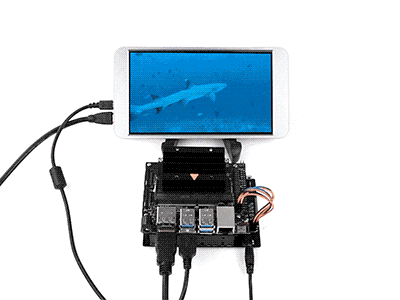

Wave UPS for NVIDIA Jetson Nano 4 x 18650

This is a UPS power module for the Jetson Nano, providing 5V uninterruptible power supply, with multi battery protection circuits. The module uses I2C bus communication for monitoring the batteries voltage, current, power, and remaining capacity in real time. The board has over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, for more safe and stable usage.

Quick Spec

• Output Voltage：5V
• Charger：8.4V 2A
• Conttrol bus：I2C
• Supported battery：18650 Li battery (NOT included)
• Dimension：113 × 79mm
• Mounting hole：2.5mm
• Weight: 280g

Dimensions

Resources

• Product Page
• Product Wiki
• Demo Codes
• Schematic
• INA219 Datasheet
• HY2120 Datasheet
• HY2213 Datasheet

Shipping List

• 1 x Wave UPS Module For Jetson Nano
• 1 x 8.4V Battery Charger
• 1 x 6PIN 9cm Cable
• 1 x Screws pack

18650 Batteries NOT included.

Wave UPS for NVIDIA Jetson Nano 4 x 18650

• Brand: Waveshare
• Product Code: W18307
• Weight: 0.28kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	No Stock
Stellenbosch	No Stock
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R388.00 (Inc Tax: R446.20)
