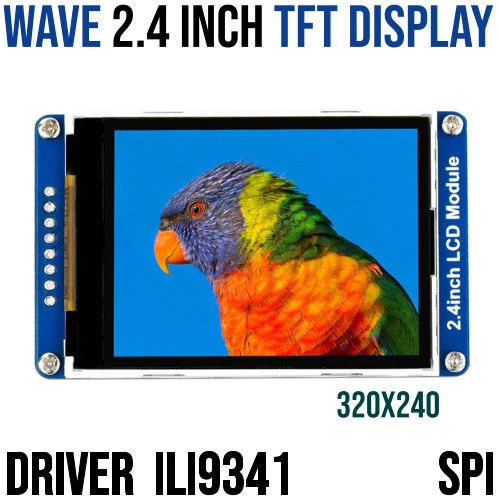

Wave 2.4" Display SPI 65K Colour
This 2.4" display makes use of ILI9341 which is a 262,144-color single-chip SOC driver for 262K-colour, graphic type TFT-LCD. It consists of 240 source line and 320 gate line driving circuits. The resolution of this LCD is 240x320, supports horizontal mode and vertical mode, and it doesn't use all the RAM of the controller.
The display can be used with almost any microcontroller including the Raspberry Pi, Arduino, STM32 boards, etc. The SPI interface makes the display simple to use and offers a clear and bright display in sunlight.
Quick Spec
- Operating Voltage: 3.3V
- Interface: SPI
- LCD Type: TFT
- Controller: ILI9341
- Resolution: 240 x 320 RGB
- Display Size: 36.72 x 48.96mm
- Pixel Size: 0.153 x 0.153mm
- Dimension: 70.5 x 43.3mm
- Net Weight: 39g
Dimensions
Pinout
- VCC: Power (3.3V input)GND: Ground
- DIN: SPI data input
- CLK: SPI clock input
- CS: Chip selection, low active
- DC: Data/Command selection (high for data, low for command)
- RST: Reset, low active
- BL: Backlight
Wiring Diagram
Raspberry Pi
Arduino
Resources
Shipping List
- 1 x 2.4inch LCD Module
- 1 x PH2.0 8PIN 20cm cable
Wave 2.4" Display SPI 65K Colour
- Brand: Waveshare
- Product Code: W18366
- Weight: 0.039kg
- Product Status : Active
