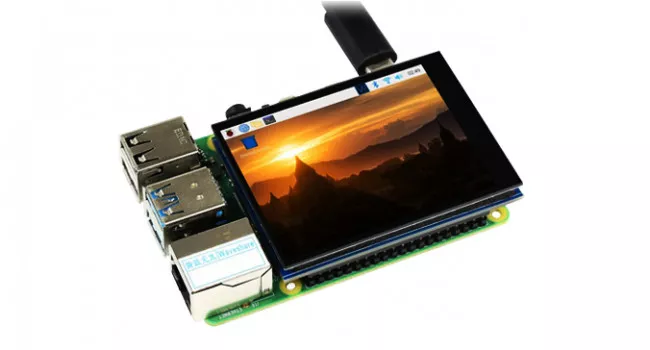

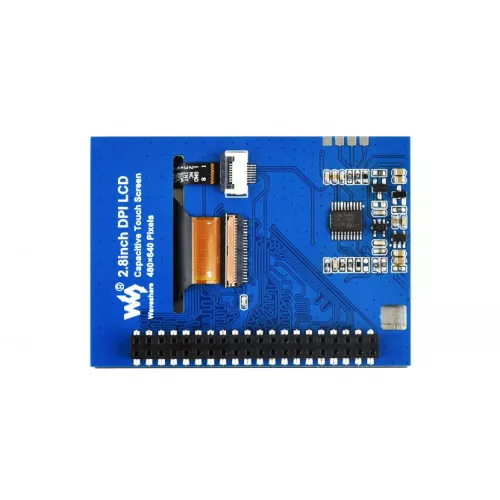

Wave 2.8" IPS Display 480x640 with Capacitive Touch

The Wave 4" IPS display has a direct interface for the Raspberry Pi. The display comes a resistive touchscreen and has a resolution of 800x480 with a LED backlight.

W18628-011

Quick Spec

  • Size: 2.8"
  • 480×640 hardware resolution
  • Capacitive touch control
  • IPS technology, high quality and perfect displaying from the very wide viewing angle
  • Designed for Raspberry Pi, based on Raspberry Pi 40pin GPIO interface
  • Using DPI666 (262K Colors) interface of Raspberry Pi to drive LCD, refresh rate up to 60Hz
  • Drive capacitive touch through I2C interface of Raspberry Pi, 5-points touch, toughened glass panel, hardness up to 6H
  • Supports Raspbian and Kali systems
  • Dimensions: 65.7 x 47.9mm
  • Net Weight: 45g

Interface

   PIN NO.       SYMBOL       DESCRIPTION
   1    NC    Not connected
   2    5V    5V power
   3    VSYNC    Vertical synchronization
   4    5V    5V Power
   5    HSYNC    Horizontal synchronization
   6    GND    Ground
   7    B2    RGB signal lines
   8    G4    RGB signal lines
   9    GND    Ground
   10    G5    RGB signal lines
   11    G7    RGB signal lines
   12    PWM    Backlight control (Pi4 can only turn on/off the backlight. Only the eralier versions support brightness adjustment with PWM)
   13    TP_INT    Interrupt pin of touch panel
   14    GND    Ground
   15    R4    RGB signal lines
   16    R5    RGB signal lines
   17    NC    Not connected
   18    R6    RGB signal lines
   19    TP_SDA    The I2C SDA of touch panel
   20    GND    Ground
   21    B7    RGB signal lines
   22    R7    RGB signal lines
   23    TP_SCL    The I2C SCL of touch panel
   24    B6    RGB signal lines
   25    GND    Ground
   26    B5    RGB signal lines
   27    LCD_CLK    Clock pin of LCD panel
   28    DE    Data enable of LCD panel
   29    B3    RGB signal lines
   30    GND    Ground
   31    B4    RGB signal lines
   32    G2    RGB signal lines
   33    G3    RGB signal lines
   34    GND    Ground
   35    NC    Not connected
   36    G6    RGB signal lines
   37    NC    Not connected
   38    R2    RGB signal lines
   39    GND    Ground
   40    R3    RGB signal lines
