Wave 7 inch QLED Capacitive Touch Display 1024 x 600

This is a 7 inch QLED capacitive display from Waveshare. QLED quantum dot display is a display device that uses quantum dots (QD), semiconductor nanocrystals which can produce pure monochromatic red, green, and blue light.

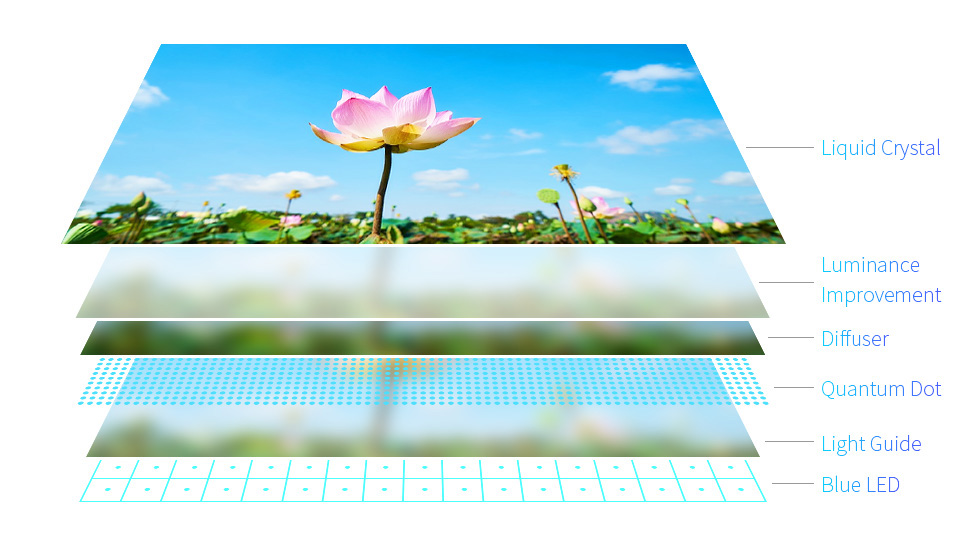

Photo-emissive quantum dot particles are used in a QD layer which uses the blue light from a backlight to emit pure basic colours which improve display brightness and colour gamut by reducing light losses and colour crosstalk in RGB LCD color filters, replacing traditional coloured photoresists in RGB LCD colour filters.

Quick Spec

• 7inch QLED quantum dot display， wider colour gamut, more pure chroma and longer lifetime
• 1024x600 hardware resolution, support software resolution (up to 1920x1080)
• Toughened glass capacitive touch panel, 6H hardness. (case version only)
• Support Jetson Nano Developer Kit, driver free
• Used with Raspberry Pi, supports Raspbian, Ubuntu, WIN 10 IoT, driver free
• Support popular Game Consoles like Xbox360, PS4 and SWITCH
• Multi-languages OSD menu, for power management, brightness/contrast adjustment, etc.
• It has a 3.5mm audio jack and supports HDMI audio output
• Dimensions: 164.9 x 124.3mm
• Net Weight: 415g

Board Layout

1. LCD FFC cable anti-interference design, more stable for industrial application
2. VCOM voltage adjustment for optimizing display effect
3. USB protocol translator, converting the touch signal into standard multi-points touch protocol to achieve smooth multi-points touch control
4. 4~5.5V wide range USB power input, to avoid display flickering or touch failure that caused by low USB voltage
5. Low dropout ideal diode isolation, when both the Touch and Power Only are connected to a power source, only the one with more power capability will be used as power supply. The two power inputs are totally isolated to prevent any breakdown
6. Two audio outputs for earphone and speaker, each track of speaker supports 2.6W PA circuit
7. OSD menu config buttons for adjusting backlight (via software) and display color
8. DC-DC LCD driver circuit, low heating on long term operation

Resources

• Product Page
• Product Wiki

Shipping List

• 1 x Wave 7" QLED Capacitive Touch Display
• 1 x HDMI Cable
• 1 x HDMI to Micro HDMI Adapter
• 1 x USB Type A to USB Micro B Cable
• 1 x RPi Screws Pack (4pcs)
