Wave 5" Capacitive Touch Display

The 5-inch Capacitive Touch Display delivers high-definition visuals with a 720×1280 resolution and a smooth multi-touch experience. Its IPS panel offers a 178° viewing angle, vibrant colors, and an 800:1 contrast ratio. The tempered glass panel, with a hardness rating of up to 6H, ensures durability and scratch resistance. Compatible with most HDMI devices, it seamlessly integrates with Raspberry Pi, supporting Raspberry Pi OS, Ubuntu, Kali, and RetroPie, as well as Windows 11/10/8.1/8/7 when used as a computer monitor.



This display features HDMI audio output, onboard speaker support, and software-controlled backlight adjustment for enhanced user customization. It operates via a 5V Type-C power supply with a low power consumption of just 2W. Engineered for reliability, it maintains stable performance within a wide temperature range. Its slim, lightweight design makes it ideal for embedded applications, DIY projects, and portable display solutions.

Quick Spec

• Display Type: 5-inch IPS LCD
• Resolution: 720 × 1280 pixels

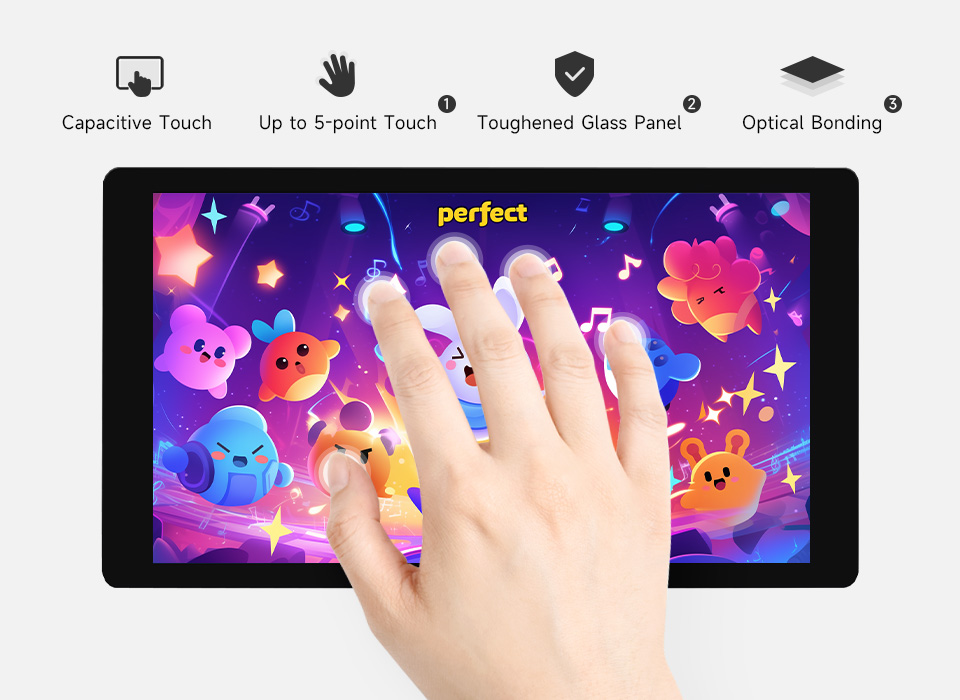

• Touch Panel: 5-point capacitive touch, tempered glass (6H hardness)
• Viewing Angle: 178°
• Color Gamut: 70% NTSC
• Contrast Ratio: 800:1
• Brightness: 350 cd/m²
• Refresh Rate: 60Hz
• Display Interface: Standard HDMI
• Audio: HDMI audio output, onboard 4-pin speaker interface
• Power Supply: 5V Type-C
• Power Consumption: 2W
• Input Voltage: 4.75V - 5.25V
• Input Current: ≥400mA
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 60°C
• Display Area: 62.1 × 110.4mm
• Dimensions: 68.7 × 128mm

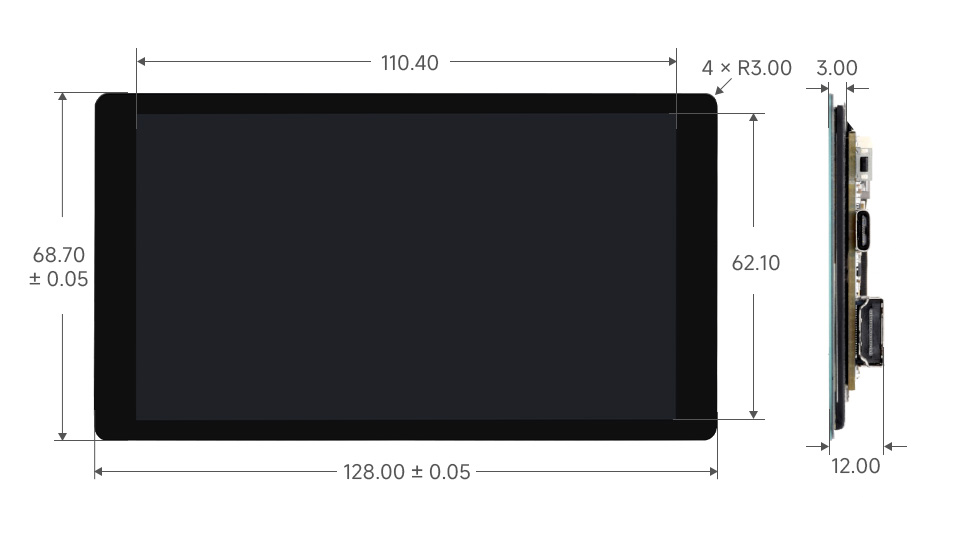

Dimensions

Interface

Working with Raspberry Pi 5

Resources

• Product Page
• Product Wiki

Shipping List

• 1 x Wave 5" Capacitive Touch Display
• 1 x Capacitive touch pen
• 1 x HDMI to Micro HDMI Adapter
• 1 x Type-A to Type-C cable ~1m
• 1 x HDMI flat cable ~1m
