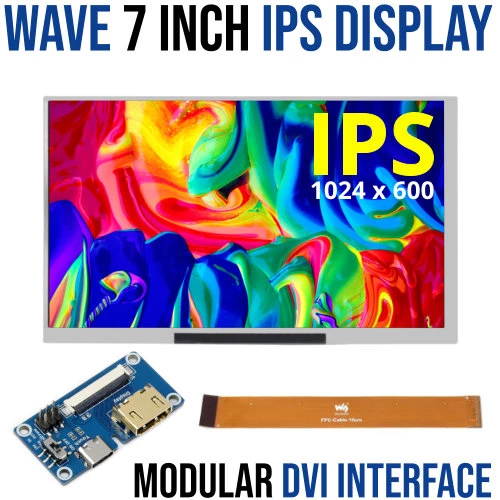

Wave 7" IPS with DVI Interface and Cable
The Wave 7" IPS series display, designed by Waveshare Team, is for customers who need a lightweight HDMI display. As it is thinner and lighter than any traditional HDMI display. For simplifying the display, it has integrate power supply, display, and control signal as the 40PIN multi-functional header. Just need an FPC cable, you can lower the project cost with the thinnest display, and apply it in any embedded projects.
Quick Spec
- Product Model: 70H-1024600 Series
- Size: 7 Inch
- Viewing Angle: 170 Deg
- Resolution: 1024 (RGB) × 600 Pixels
- Display Size: 164 × 97 × 3.5mm
- Display Area: 154.2144 × 85.92mm
- Pixel Pitch: 0.1506 x 0.1432mm
- IPS Version Color: Gamut 45%NTSC
- Brightness: 350cd/m²
- Backlight Adjustment Method: PWM software dimming
- Contrast: 800:1
- Colour Depth: 16.7M
- Refresh Rate: 60Hz
- User Interface: 40PIN 0.5mm FPC
Dimensions
Resources
Shipping List
- 1 x Wave 7" IPS with DVI Interface Board
- 1 x FPC Cable

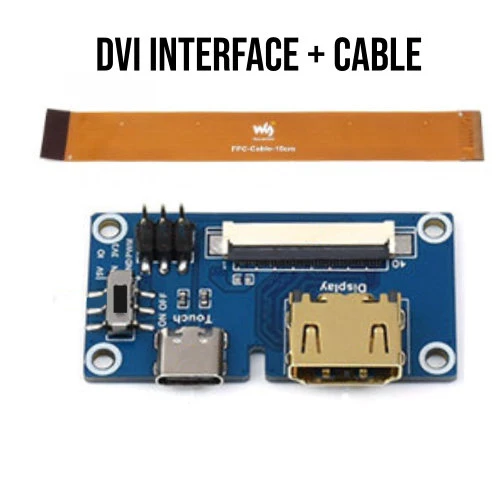

- 1 x Adapter Board
- 1 x USB-A to USB-C Cable
- 1 x HDMI to HDMI Cable
- 1 x HDMI to Micro HDMI
Wave 7" IPS with DVI Interface and Cable
- Brand: Waveshare
- Product Code: W22672
- Weight: 0.357kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | Limited Stock | UD085 |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R698.00 (Inc Tax: R802.70)
