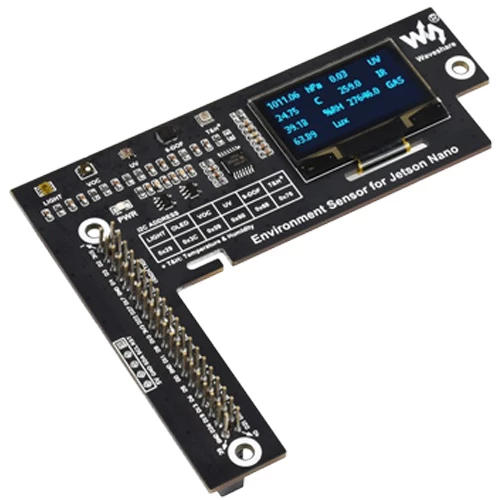

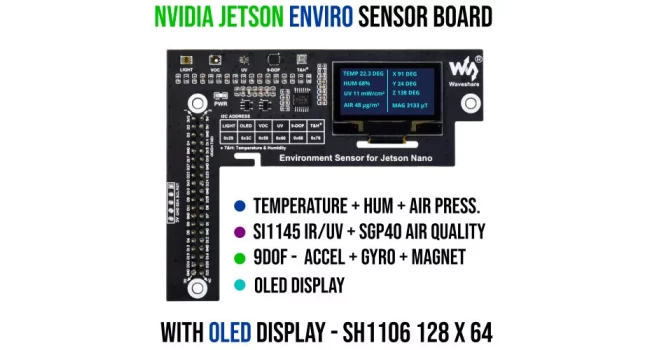

Wave Environment Sensor for Jetson Nano
The Wave Environment Sensor for Jetson Nano is a versatile module that enhances the Jetson Nano Developer Kit by enabling it to monitor environmental factors such as temperature, humidity, air pressure, ambient light, VOC levels, IR and UV rays. It is ideal for robotics projects requiring motion and orientation detection, thanks to its onboard 9-axis motion sensor.
Featuring advanced sensors like the TSL25911FN for ambient light, BME280 for atmospheric data, and SGP40 for VOC detection, this module also includes a 1.3-inch OLED display for real-time data visualization. With simple I2C integration and comprehensive development resources, it’s perfect for environmental monitoring and smart robotics applications.
Quick Spec
- Sensors:
- Ambient Light: TSL25911FN, range 0~88000 Lux
- Temperature/Humidity/Air Pressure: BME280, accuracy ±1°C, ±3%RH, ±1hPa
- Motion: ICM20948 (9-axis accelerometer, gyroscope, magnetometer)
- IR/UV: LTR390-UV-1, wavelength 300–350nm
- VOC: SGP40, range 0~1,000 ppm
- Display: 1.3-inch OLED, 128×64 resolution, blue
- Interface: I2C, addresses 0x29, 0x76, 0x68, 0x53, 0x59, 0x3C
- Applications: Environmental monitoring, robotics, motion detection
- Development Resources: Python examples, user manuals
Dimensions

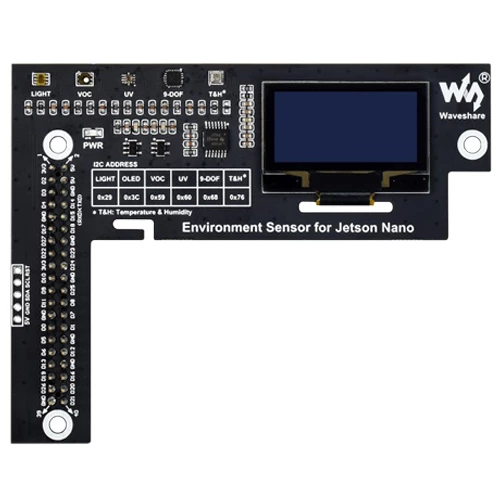

Board Layout
- TSL25911FN: digital ambient light sensor, for measuring IR and visible light
- LTR390-UV-1: IR/UV sensor
- SGP40: VOC sensor
- ICM20948: 3-axis accelerometer, 3-axis gyroscrope, 3-axis magnetometer
- BME280: temperature, humidity, and air pressure sensor
- Voltage level translator: 5V to 3.3V
- 1.3inch OLED: 128x64 resolution
Resources
- Product Page
- Product Wiki
- Schematic
- BME280 Datasheet
- TSL2591 Datasheet
- Si1145 Datasheet
- ICM-20948 Datasheet
- SGP40 Datasheet
Shipping List
- 1 x Wave Environment Sensor for Jetson Nano
- 1 x Screw Pacck
Wave Environment Sensor for Jetson Nano
- Brand: Waveshare
- Product Code: W19486
- Weight: 0.061kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | Limited Stock | FF163 |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R896.00 (Inc Tax: R1,030.40)
