• Description

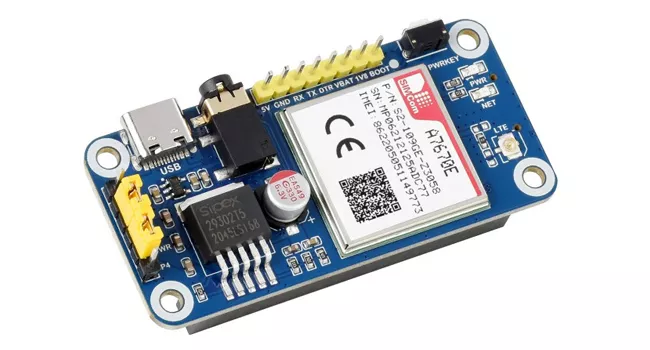

Wave A7670E GSM HAT for Raspberry Pi

The A7670E Cat-1 HAT is an LTE Cat-1 module, which supports wireless communication modes including LTE-TDD, LTE-FDD, GSM, GPRS and EDGE, with up to 10Mbps downlink rate and 5Mbps uplink rate. It supports Windows/Linux operating systems and multiple network protocols. The module size is the same as SIM7000/SIM7070 series, and the AT commands is mostly compatible with SIM7600 series. It is suitable for IoT applications like remote information processing, monitoring devices, POS, industrial routers, remote diagnosis, and so on.

Quick Spec

Frequency Band

• LTE Cat-1: LTE-FDD: B1, B3, B5, B7, B8, B20
• 2G: GSM/GPRS/EDGE: 900/1800 MHz

SMS and Audio

• SMS
• Supported types: MT, MO, CB, Text, PDU
• Storage: USIM card (CB couldn't be stored on SIM card)
• Audio: Standard 3.5mm audio jack for audio input/output

General

• Power Supply: 5V
• Operating Voltage: 5V / 3.3V (configured via jumper)
• Operating Temperature: -30 ~ +80°C
• Storage Temperature: -45 ~ +90°C
• Dimensions: 65 × 30.5mm

Dimensions

Pinout

Resources

• Product Page
• Product Wiki
• Schematic
• Demo Code
• A7600X Windows Driver
• SSCOM
• NetAssist

Shipping List

• 1 x Wave A7670E GSM HAT for Raspberry Pi
• 1 x LTE Antenna
• 1 x USB-A to USB-C cable
• 1 x RPi screws pack

Wave A7670E GSM HAT for Raspberry Pi

• Brand: Waveshare
• Product Code: W20049
• Weight: 0.117kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	No Stock
Stellenbosch	No Stock
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R659.00 (Inc Tax: R757.85)
