• Description

Wave Enviro Sensor, Pi Interface and I2C interface

The Environment Sensor HAT is designed for Raspberry Pi, with rich onboard resources including ambient light sensor, VOC sensor, IR / UV sensor, gyroscope, accelerometer, magnetometer, barometer, temperature & humidity sensor, and so on. It uses the simple I2C bus for communicating with Raspberry Pi.



The Environment Sensor HAT gives Raspberry Pi the ability to collect environment data like temperature & humidity, air pressure, ambient light intensity, VOC, IR ray, UV ray, etc. It can also be used to build a robot that can detect motion and orientation.

Quick Spec

• 40PIN GPIO, Compatible with all the Raspberry Pi Boards
• Onboard TSL25911FN digital ambient light sensor, for measuring IR and visible light
• Onboard BME280 sensor, for measuring temperature, humidity, and air pressure
• Onboard ICM20948 motion sensor, accelerometer, gyroscope, and magnetometer
• Onboard LTR390-UV-1 sensor, for measuring UV rays
• Onboard SGP40 sensor, for detecting ambient VOC
• Onboard 1.3inch OLED display, for displaying environment data in real-time
• I2C bus allows reading and displaying data by just using two wires
• Dimensions: 65 x 30mm

Dimensions

Pinout

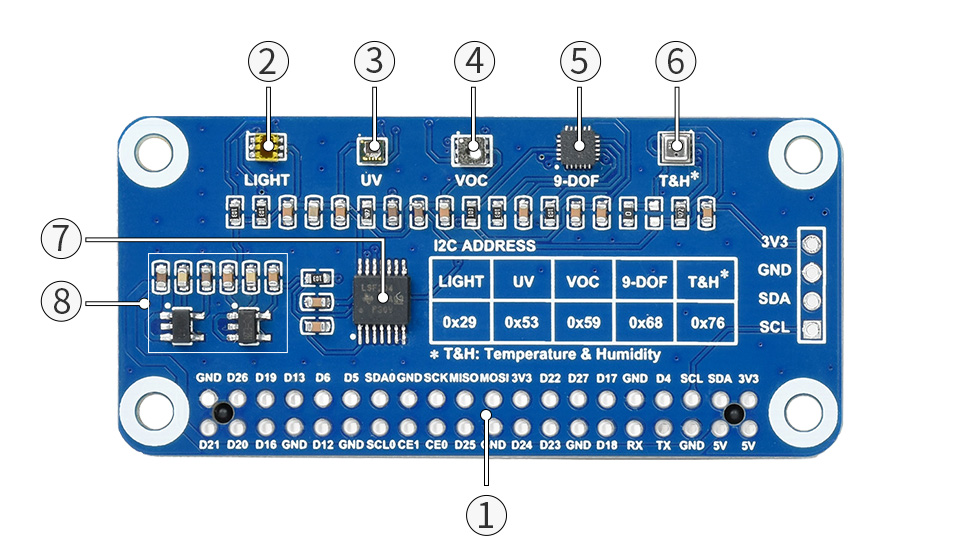

Board Layout

1. Raspberry Pi GPIO
2. TSL25911FN: digital ambient light sensor, for measuring IR and visible light
3. LTR390-UV-1: UV sensor
4. SGP40: VOC sensor
5. ICM20948: 3-axis accelerometer, 3-axis gyroscope, 3-axis magnetometer
6. BME280: temperature, humidity, and air pressure sensor
7. Logic level conversion: 3.3V to 1.8V
8. Voltage regulator: 5V to 3.3V/1.8V

Resources

• Product Page
• Product Wiki
• Schematic
• BME280 Datasheet
• TSL2591 Datasheet
• LRT-390UV-01 Datasheet
• ICM-20948 Datasheet
• SGP40 Datasheet
• Demo Code

Shipping List

• 1 x Environment Sensor HAT
• 1 x 2x20PIN female header
• 1 x 4PIN header
• 1 x RPi screws pack (2pcs)

Wave Enviro Sensor, Pi Interface and I2C interface

• Brand: Waveshare
• Product Code: W20471
• Weight: 0.018kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	Limited Stock	F75
Stellenbosch	Limited Stock	U16
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R659.00 (Inc Tax: R757.85)
