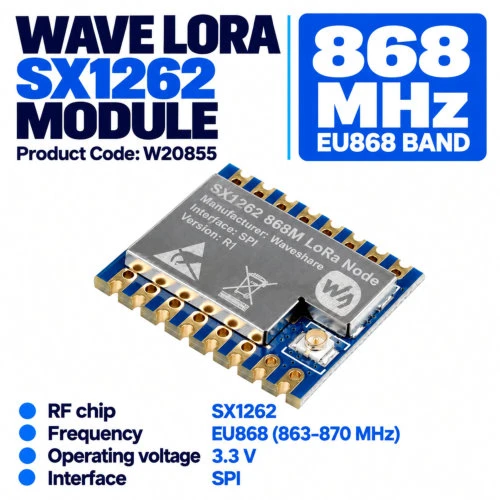

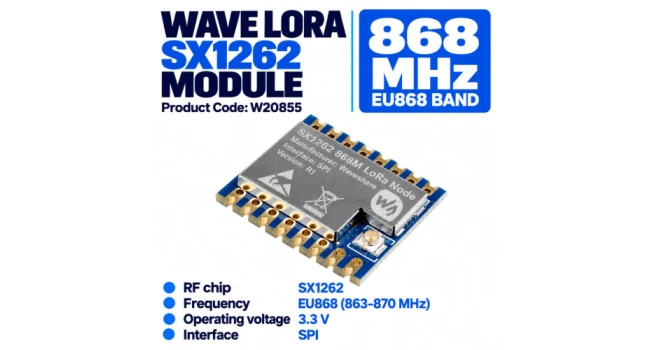

Wave LoRa 868MHz SX1262 Module

The Core1262-868M is a LoRa core module which incorporates new-generation SX1262 chip. It has features including mini size, long range transmission, high anti-interference capability, and so on. The module uses EU868 band, combined with LoRa gateway, it can be connected to servers like TTN server to build LoRa network.

W20855-000

The main features of the board are:

  • New-generation SX1262, higher power efficiency and longer transmission distance than the traditional SX1278
  • EU868 band, combined with LoRa gateway, quick connection to cloud servers like TTN server

Quick Spec

  • RF Chip: SX1262
  • Frequency Range: EU868 (863~870MHz)
  • Modulation: LoRa/(G)FSK
  • Data Rate
    • 0.018~62.5Kbps (LoRa)
    • 0.6~300Kbps ((G)FSK)
  • Emit Power: <14dBm@3.3V
  • Spreading Factor: SF5 ~ SF12
  • Operating Voltage: 3.3V
  • Module Power Consumption
    • Emitting Current: 45mA@14dBm
    • Receiving Current: 5.3mA@125KHz
  • Communication Bus: SPI
  • Operating Temperature: -40 ~ +85℃
  • Connector: castellated edge / solder holes
  • Dimensions: 21 × 52mm

Dimensions

Core1262-868-M-details-size

Pinout

W20855-003

Application Example

Industrial Environment, Smart Home, And Data Acquisition

Core1262-868-M-details-7

Resources

Shipping List

  • 1 x Wave LoRa 868MHz SX1262 Module


Wave LoRa 868MHz SX1262 Module

  • Brand: Waveshare
  • Product Code: W20855
  • Weight: 0.004kg
