• Description

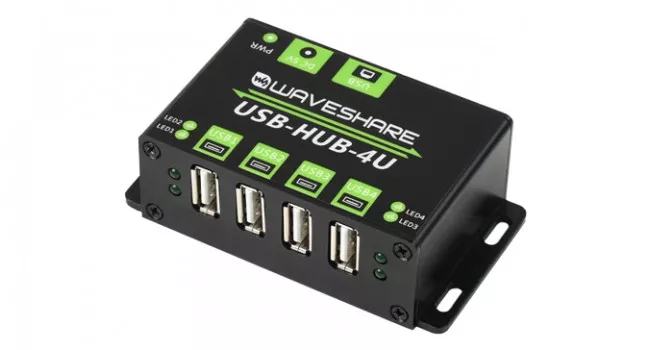

Wave Industrial Grade USB HUB - 4 Port

This Industrial grade USB HUB is great for extending up to 4 USB 2.0 ports, suitable for industrial/office environments with higher-level device requirements.

The unit features:

• 4x extended USB ports, compatible with USB 2.0 / 1.1
• Industrial grade HUB chip, adopting MTT technology, allows stable and smooth 4x concurrent USB connections
• ESD protection for each USB port, preventing electric surge damage and data loss
• Over-voltage protection, effectively preventing other high voltage power input from damaging the connected devices
• Multiple protection circuits: over-voltage, over-current, short circuit, over-temperature, reverse current, under voltage lock-out, 8KV ESD protection, filtering protection, etc.
• LED indicators for monitoring operating statuses of power supply and USB ports
• Industrial grade metal case, rugged & durable, with mounting holes for easy installation

Quick Spec

• Standard: USB2.0
• Data Rate: up to 480Mbps
• OS Support: Mac OS (8.6 or above), Linux(2.4.20 or above), Windows 11/10/8.1/8/7/XP
• USB HUB INPUT:
• Operating voltage: 5V
• Connector: USB-A
• USB OUTPUT:
• Operating voltage: 5V@Imax:1.2A (up to 1.2A Max output current for each USB port, when there's enough power input)
• Connector: USB-A
• External Power:
• Power supply voltage: DC 5V (comes with a 5V 2A power supply, it is recommended to use another 5V 4A or above power supply for higher USB loads)
• Connect: DC jack
• Operating environment: -40 ~ 85°C
• Dimensions: 86 x 47.8 x 27.6mm

Dimensions

Interface

Resources

• Product Page
• Product Wiki

Shipping List

• 1 x Wave Industrial Grade USB HUB - 4 Port
• 1 x USB cable ±1.2m
• 1 x 5V 2A power adapter

Wave Industrial Grade USB HUB - 4 Port

• Brand: Waveshare
• Product Code: W20861
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	No Stock
Stellenbosch	No Stock
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R348.00 (Inc Tax: R400.20)
