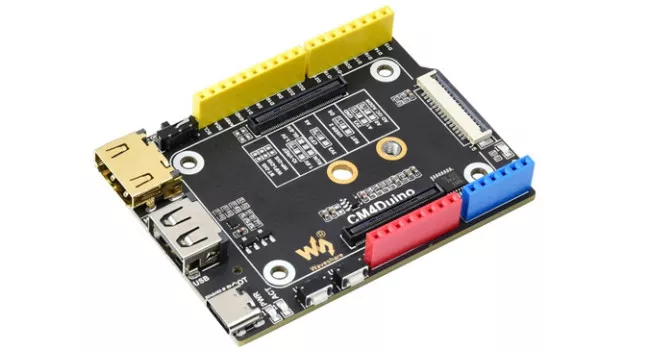

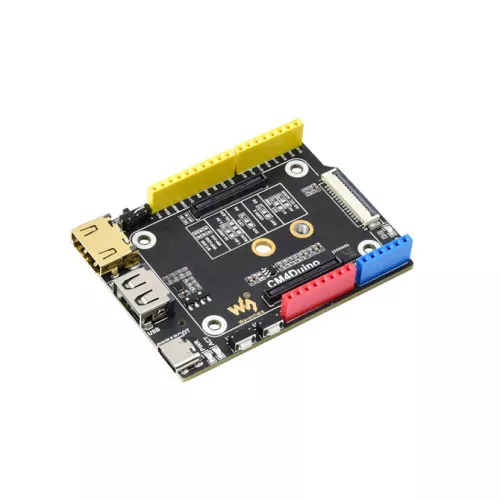

Wave Pi Compute Board 4 - Arduino Form Factor

This base board for the Raspberry Pi Compute Module 4 gives your CM4 an Arduino Uno footprint with the same pin header layout and PCB size as the famous Arduino board.

The board supports a 5V DC power supply via the Type-C interface. There's a full-size HDMI interface, one CSI interface and one USB 2.0 interface. You'll also find an SD slot as well as a programmable LED (GPIO6), two user-programmable buttons (one of which can also be used as a reset button), a BOOT switch and solder jumpers for various settings.

You can also add an NVME SSD to this board using the M.2 interface on the underside of the PCB.

Quick Spec

• CM4 Socket: Suitable for all variants of Compute Module 4

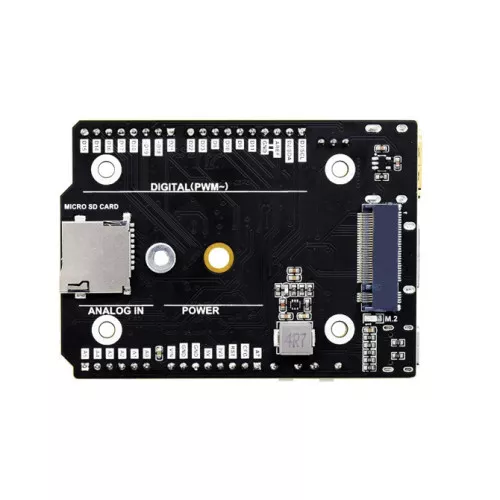

• Connector: M.2 M KEY slot, for communication module or NVME SSD
• Arduino compatible GPIO header
• USB: USB 2.0 Type A × 1
• Camera: MIPI CSI-2 × 1 (15pin 1.0mm FPC connector)
• Video: HDMI × 1, supports 4K 30fps output
• Storage Micro SD card socket for Compute Module 4 Lite (without eMMC)
• Power Input: 5V
• Dimensions: 73.6 × 53.4mm

Dimensions

Pinout

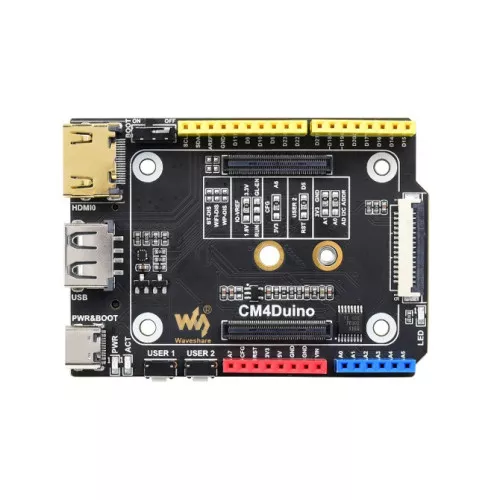

Board Layout
