Wave Pi Pico CAN BUS Expansion Board

The Wave Pi Pico CAN BUS Expansion Board is designed for seamless communication with Raspberry Pi Pico and other devices. This powerful CAN module features a standard Raspberry Pi Pico header, accommodating various Pico series boards.

W23775-007

This expansion board incorporates a SPI interface CAN controller MCP2515 and a high-performance transceiver SIT65HVD230DR, ensuring reliable and efficient CAN communication. Access online development resources and a comprehensive manual with examples in Raspberry Pi Pico C/C++ and MicroPython for straightforward integration and programming.

With an operating voltage range of 3.3V to 5V, this board offers flexibility for different setups. Its SPI control interface enables smooth and responsive operations. Choose from a wide range of baudrates, from 5K to 1000Kbps, to suit your communication speed needs.

Quick Spec

  • Operating Voltage: 3.3 ~ 5V
  • CAN Controller: MCP2515
  • Control Interface: SPI
  • CAN Transceiver: SIT65HVD230DR
  • Baudrate: 5K ~ 1000Kbps
  • Dimensions: 52 x 21mm

Dimensions

W23775-006

Pinout

W23775-005

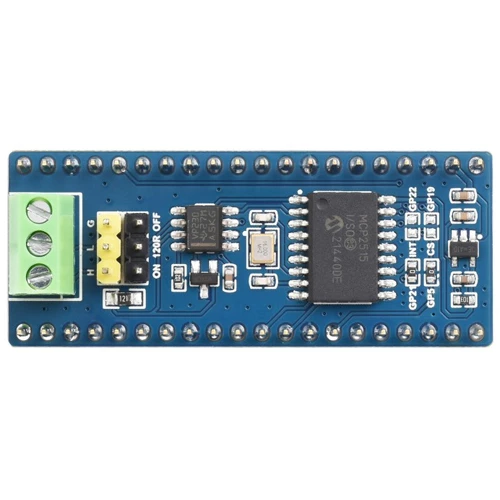

Board Layout

W23775-004

  1. RT9013-33GB: 500mA low dropout, low noise, ultra-fast LDO
  2. MCP2515: Second generation standalone CAN controller
  3. SIT65HVD230DR: 3.3V CAN transceiver
  4. Terminal resistor selection:
    ON: connected to 120R matching resistor
    OFF: disconnected from 120R matching resistor
  5. CAN bus terminal
