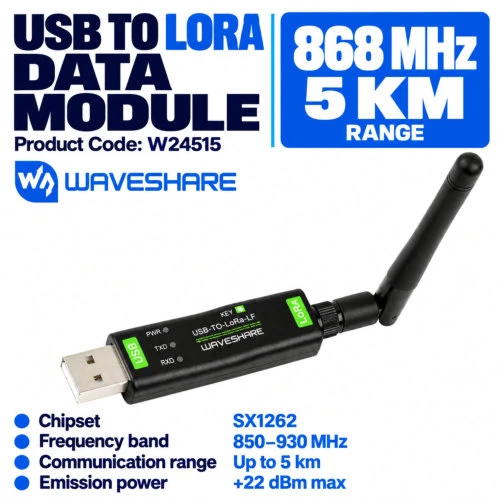

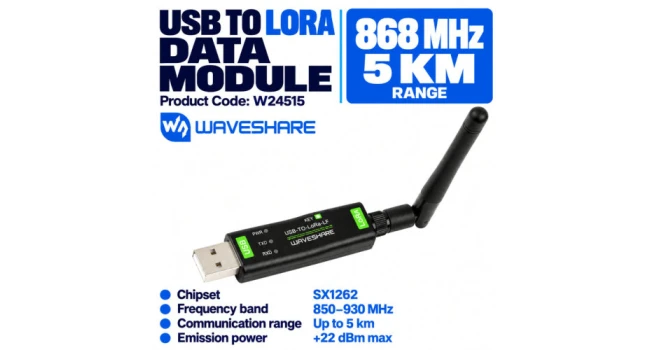

Wave USB to LoRa SX1262 868MHz

The Wave USB to LoRa SX1262 868MHz module is a versatile wireless data transfer solution utilizing LoRa modulation for long-range and anti-interference communication. Compact and driver-free, this device supports multi-system compatibility and provides seamless integration for industrial and non-standard protocols. Featuring AES encryption, relay networking, and advanced features like Listen Before Talk (LBT) and RSSI output, it ensures secure, efficient, and reliable data transmission over distances of up to 5 km.

USB-TO-Lo-Ra-LF-details-5

Equipped with the original SX1262 chip, the module delivers exceptional performance with -148 dBm sensitivity and +22 dBm emission power. Designed with USB and SMA antenna interfaces, it offers ease of use and flexibility for various applications, including IoT networks, remote device control, and wireless data exchange. The module comes in the TCXO version for extended temperature ranges (0 ~ +85℃).

Quick Spec

  • Chipset: SX1262
  • Frequency Band: Sub-GHz (850–930 MHz)
  • Modulation: LoRa
  • Encryption: AES128
  • Sensitivity: -148 dBm
  • Emission Power: +22 dBm Max
  • Communication Range: Up to 5 km
  • Interfaces: USB Type-A, SMA-KE female antenna connector
  • Data Rate: 1200–115200 bps
  • Temperature Range: 0 ~ +85℃ (TCXO)
  • Humidity: 5%–95% RH
  • Dimensions: 56.4 x 18.4 x 12.5mm

Dimensions

W24515-005

Resources

Shipping List

  • 1 x Wave USB to LoRa SX1262 868MHz
  • 1 x Duck Antenna - 868MHz


Wave USB to LoRa SX1262 868MHz

  • Brand: Waveshare
  • Product Code: W24515
  • Weight: 0.031kg
  • Product Status : Active
  • Stock

    Warehouse Stock Status Location
    Centurion In Stock Y061
    Stellenbosch In Stock L73
    Bulk Location No Stock

    We ship free of charge between branches to complete your order.

  • R326.00 (Inc Tax: R374.90)
