• Description

Wave Industrial USB to 4 Channel RS485 Converter

Upgrade your industrial communication with the Wave Industrial USB to 4 Channel RS485 Converter. Featuring CH344L and SP485EEN chips, this non-isolated converter ensures enhanced stability. Encased in a durable aluminum alloy design, it includes lightning protection, ESD safeguards, and TVS protection. With automatic transmit-receive conversion, it delivers high-speed, stable, and secure communication. Perfect for diverse industrial applications, it supports various operating systems, including Mac OS, Linux, and Windows. Elevate your control equipment's performance with this reliable and efficient USB to RS485 converter.

Quick Spec

• Host Port: USB
• Device Port: RS485
• Baudrate: 1200bps ~ 460800bps
• USB
• Operating Voltage: 5V
• Connector: USB-B
• Protection: 500mA resettable fuse, ESD protection
• Transmission Distance: ±5m
• RS485
• Connector: Screw terminal
• Protection: 600W lightning-proof and surge-suppress, 15KV ESD protection
• Transmission Distance: Maximum communication distance is about 1200m (at a low rate, with 120R resistor turned on)
• Transmission Mode: Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
• Operating Temperature: -40 ~ +85℃
• Operating Humidity: 5%RH ~ 95%RH
• Operating System: Win7/8/8.1/10/11, Mac, Linux, Android

Dimensions

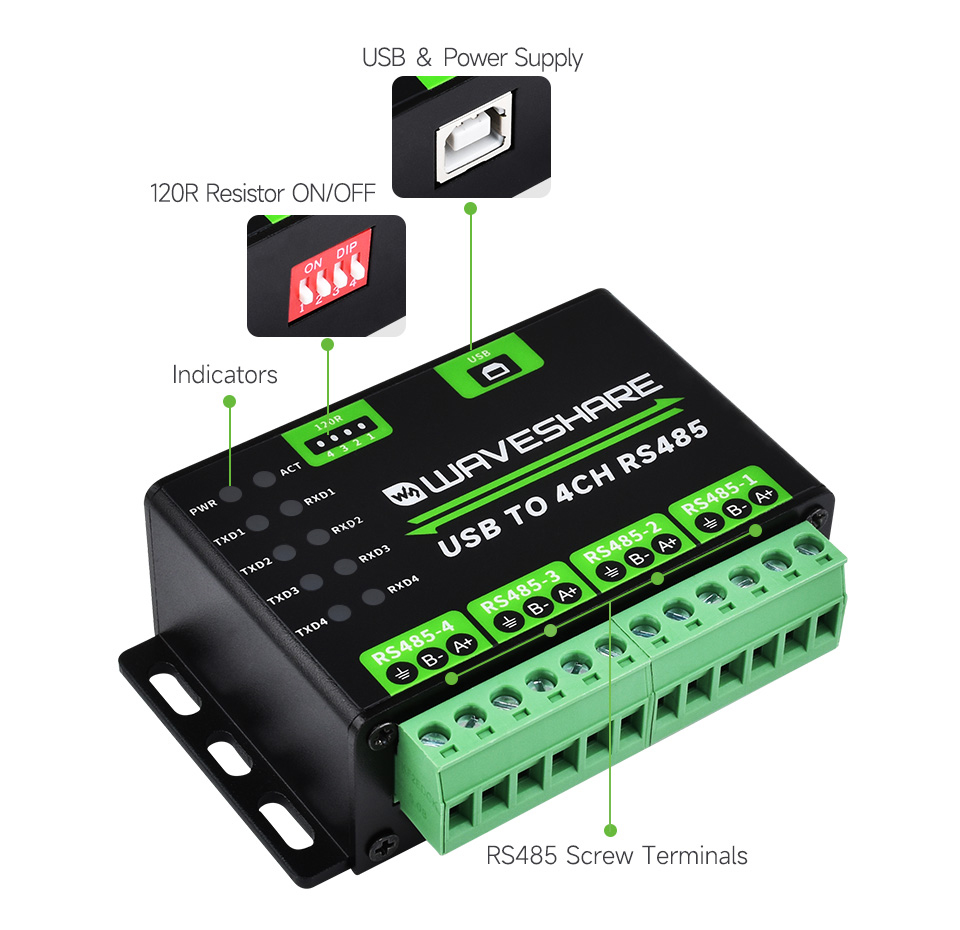

Interface

Pinout

• PE: Signal ground
• A (1~4): A(1~4) differential signal A+
• B (1~4): B(1~4) differential signal B-

Resources

• Product Page
• Product Wiki
• Datasheet

Shipping List

• 1 x Wave Industrial USB to 4 Channel RS485 Converter
• 1 x USB type A to type B cable ~ 1.2m

Wave Industrial USB to 4 Channel RS485 Converter

• Brand: Waveshare
• Product Code: W25219
• Weight: 0.172kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	No Stock
Stellenbosch	No Stock
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R356.00 (Inc Tax: R409.40)
