Wave ESP32-S3 4.3" Display
Introducing the Wave ESP32-S3 4.3" display - a versatile microcontroller development board with WiFi, Bluetooth 5, and LVGL capabilities. Powered by the 32-Bit LX7 dual-core processor which can operate at up to 240MHz, it offers 2.4GHz Wi-Fi, Bluetooth 5, and extensive Flash and PSRAM. Featuring a 4.3" capacitive touch screen with 800×480 resolution and multiple interfaces like CAN, RS485, and I2C, it's ideal for HMI development and ESP32-S3 applications.
Quick Spec
- Dual-core Xtensa 32-bit LX7 processor up to 240MHz
- 2.4GHz Wi-Fi (802.11 b/g/n) & Bluetooth 5 (LE) with onboard antenna
- 512KB SRAM, 384KB ROM, 8MB PSRAM, and 8MB Flash
- 4.3" capacitive touch display
- 800×480 resolution, 65K colour
- Supports 5-point touch control via I2C interface
- Features CAN, RS485, I2C, TF card slot, and USB port
- Flexible clock settings and module power supply control for low power consumption
Dimensions

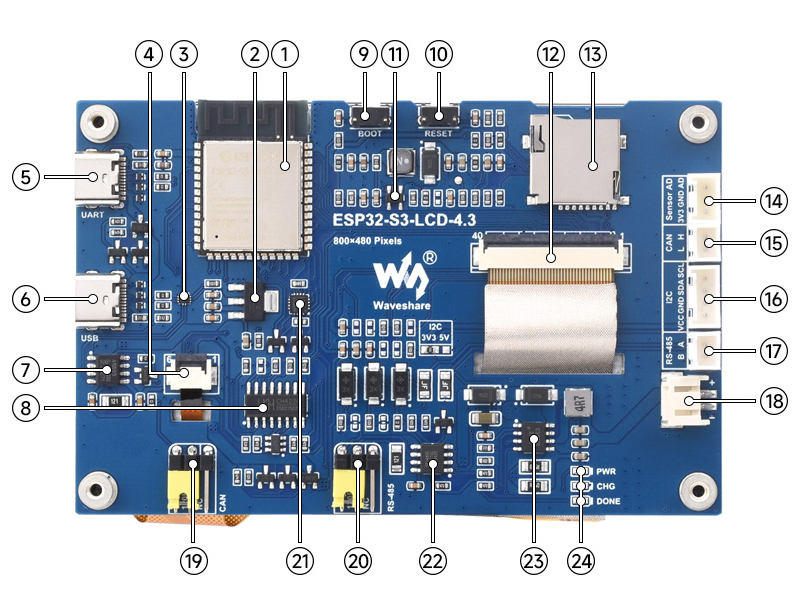

Board Layout
- ESP32-S3N8R8: The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, integrated 8MB PSRAM and Flash
- SGM2212-3.3: 800mA low-noise LDO
- FSUSB42UMX: for USB pins multiplexing
- Touch panel connector
- USB TO UART Type-C port
- USB Type-C port
- TJA1051T/3/1J: CAN interface chip
- CH422G: IO expansion chip
- BOOT button: Press and hold while powering on for program burning
- RESET button
- MP3302DJ-LF-Z: Screen backlight boost chip
- 4.3inch display panel connector
- TF card slot
- Sensor header
- CAN header
- I2C header
- RS485 header
- 3.7V single lithium battery PH2.0 header
- CAN terminal resistor selection
- RS485 terminal resistor selection
- CH343P: USB to UART chip
- SP3485: RS485 transceiver chip
- CS8501: Lithium battery recharge manager
- Status Indicators PWR: Power supply indicator
CHG: Lithium battery charging indicator
DONE: Lithium battery charging completed indicator
Resources
Shipping List
- 1 x Wave ESP32-S3 4.3" Display
- 2 x HY2.0 2P to 2PIN male cable 10cm
- 1 x HY2.0 2P to 3PIN male cable 10cm
- 1 x HY2.0 2P to 4PIN male cable 10cm
- 1 x Standoff pack
Wave ESP32-S3 4.3" Display
- Brand: Waveshare
- Product Code: W25948
- Weight: 0.161kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | AA115 |
| Stellenbosch | Limited Stock | Z0007 |
We ship free of charge between branches to complete your order.
-
R758.00 (Inc Tax: R871.70)
