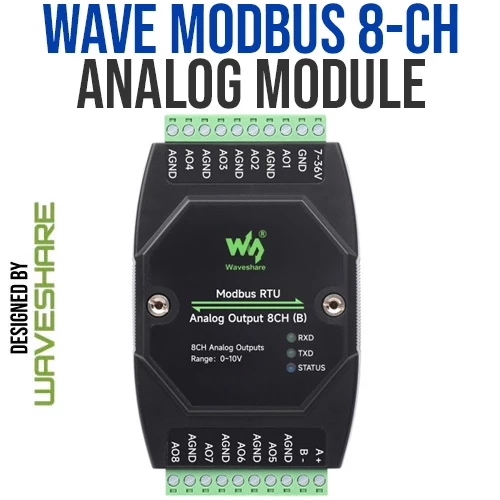

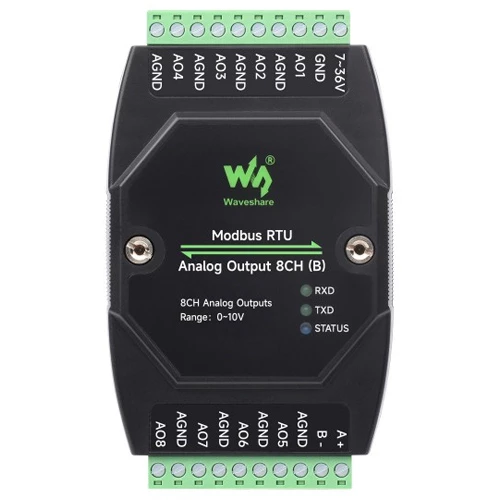

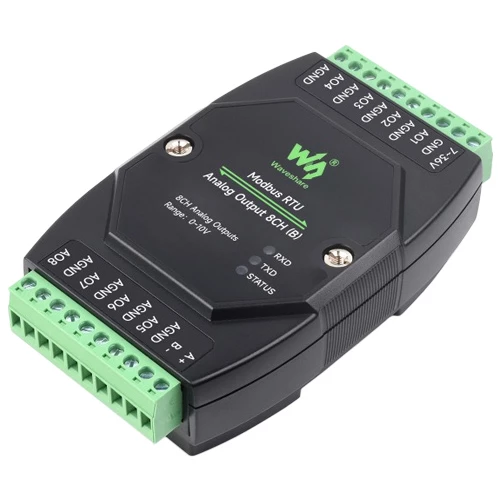

Wave MODBUS RTU 8 Channel Analog Module - 4-20ma Out

The Wave MODBUS RTU 8-Channel Analog Module is an industrial-grade analog output solution designed for precision and reliability. With 8 simultaneous 12-bit current outputs (0–20mA), it is ideal for professional industrial applications. The module supports the MODBUS RTU protocol via RS485 communication and features configurable device addressing for cascading multiple devices.



Built with robust isolation and protection mechanisms, including power and signal isolation, TVS protection, and resettable fuses, this module ensures stable operation even in harsh environments. Its wide power input range (7–36V) and rail-mount design make it adaptable and easy to install for industrial setups.

Quick Spec

• Output Channels: 8 simultaneous current outputs
• Output Range: 0–20mA
• Resolution: 12-bit, 1µA
• Accuracy: ±0.03mA
• Communication Interface: RS485
• Supported Protocol: MODBUS RTU
• Baud Rates: 4800 to 256000 (default: 9600, N, 8, 1)
• Power Input: DC 7–36V
• Isolation: Power and signal isolation with TVS, resettable fuses, and ESD protection

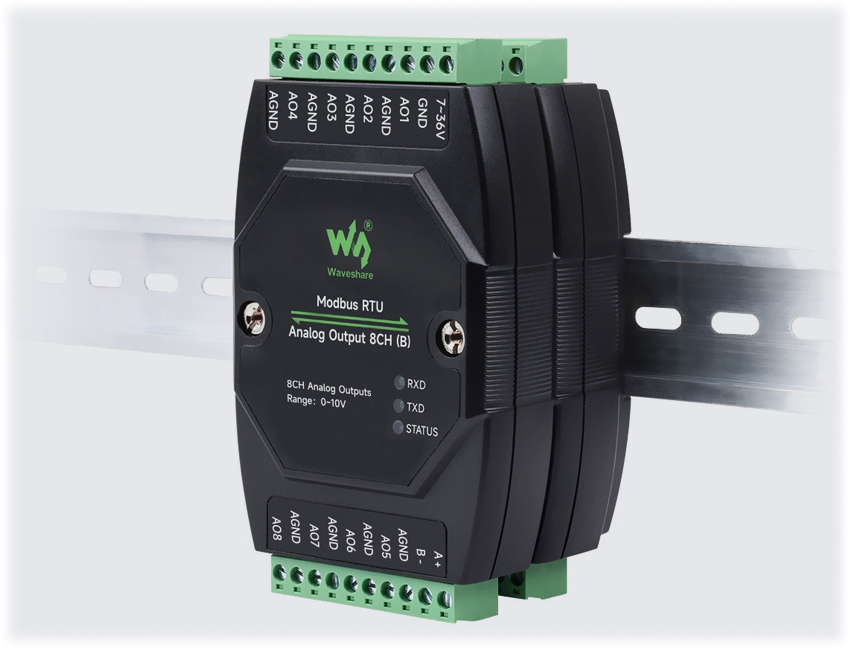

• Installation: 35mm rail-mount, stackable design
• Indicators: LEDs for MCU status and signal transmission

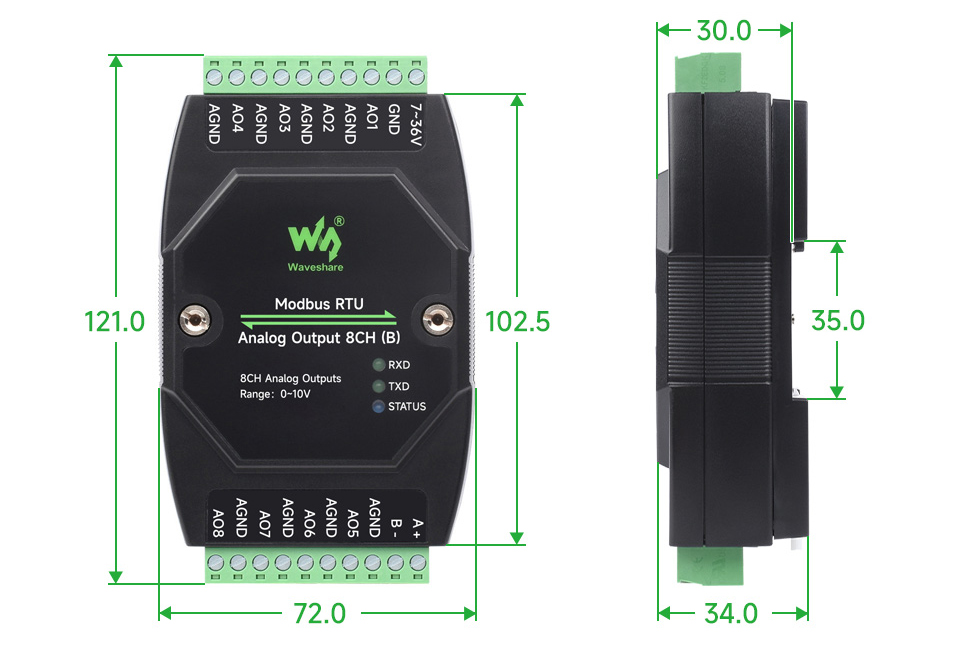

Dimensions

Interface

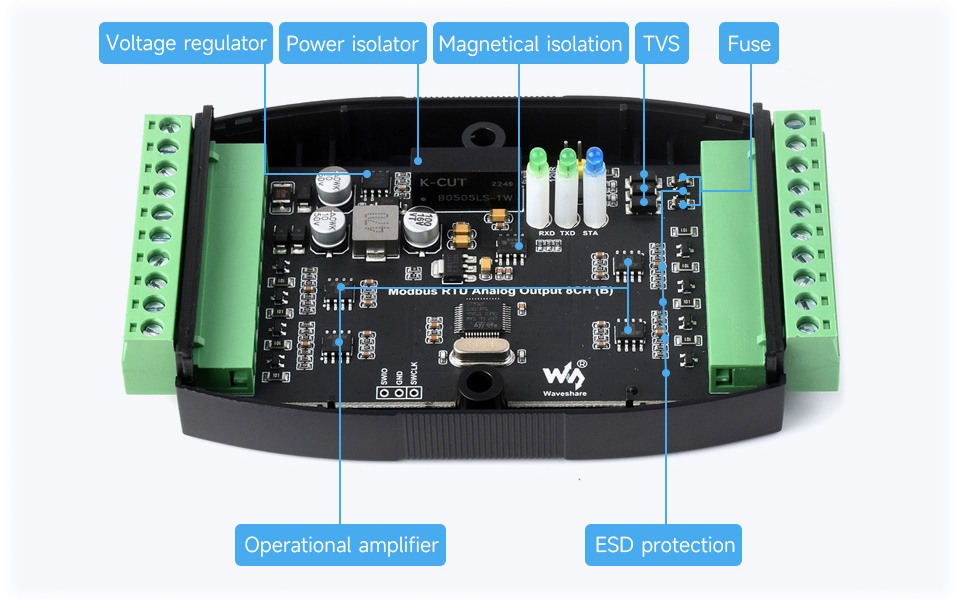

Layout

Resources

• Product Page
• Product Wiki
• Demo Code
• Modbus Poll Software
• Sscom5.13.1

Shipping List

• 1 x Wave MODBUS RTU 8 Channel Analog Module - 4-20ma Out
• 1 x Power supply terminal adapter
• 1 x Screwdriver

Wave MODBUS RTU 8 Channel Analog Module - 4-20ma Out

• Brand: Waveshare
• Product Code: W26419
• Weight: 0.19kg
• Product Status : Active
