• Description

Wave Pi5 USB to UART Debugger Module

The USB to UART Debugger Module for Raspberry Pi 5 is a versatile and reliable debugging solution, featuring high-speed data transmission and multi-system compatibility. Designed specifically for Raspberry Pi 5, it supports multiple connection methods, including via SH1.0 3-pin cable or 6-pin GPIO header. This module ensures stable communication with built-in protection circuits for overcurrent, overvoltage, surge, and static, enhancing reliability and safety.



Equipped with a USB Type-A port and selectable 3.3V or 5V TTL levels, the module is adaptable for various debugging requirements. It features a durable black immersion gold finish and supports Windows, Mac, Linux, and Android systems. Ideal for efficient debugging and secure communication in Raspberry Pi projects.

Quick Spec

• Host Interface: USB Type-A
• Device Interface: UART (6-pin header, 3-pin SH1.0 connector)
• Baud Rate Range: 50bps ~ 6Mbps
• Protection: Self-recovery fuse, ESD, anti-surge, IO protection diodes
• TTL Levels: Selectable 3.3V or 5V
• Power Source: USB-powered
• System Support: Windows 7/8/8.1/10/11, Mac, Linux, Android
• Design: Double-sided black immersion gold PCB

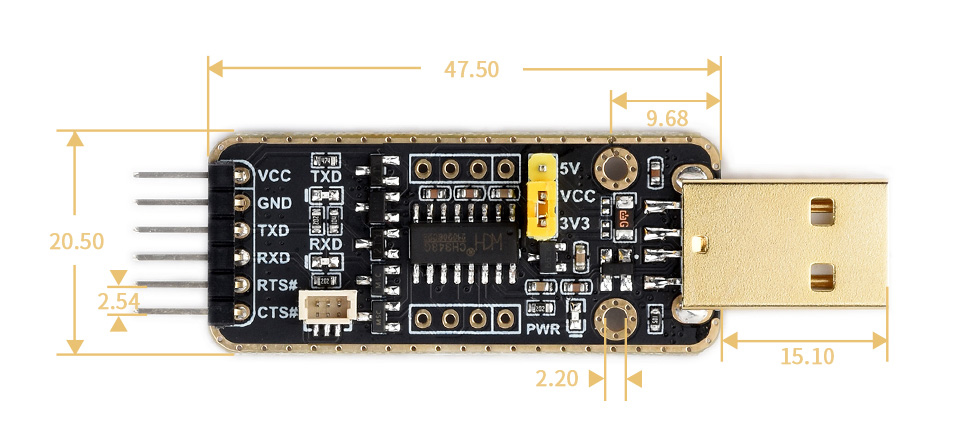

Dimensions

Board Layout

Resources

• Product Page
• Product Wiki
• Schematic
• CH343 Datasheet

Shipping List

• 1 x Wave Pi5 USB to UART Debugger Module
• 1 x 6-Pin Du Pont cable
• 1 x JST-SH (1.0mm) connector to 3-PIN cable - 100mm (Qwiic Cable)
• 1 x Dual JST-SH (1.0mm) connector 3-PIN cable - 100mm (Qwiic Cable)

Wave Pi5 USB to UART Debugger Module

• Brand: Waveshare
• Product Code: W26619
• Weight: 0.02kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	No Stock
Stellenbosch	No Stock
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R76.00 (Inc Tax: R87.40)
