• Description

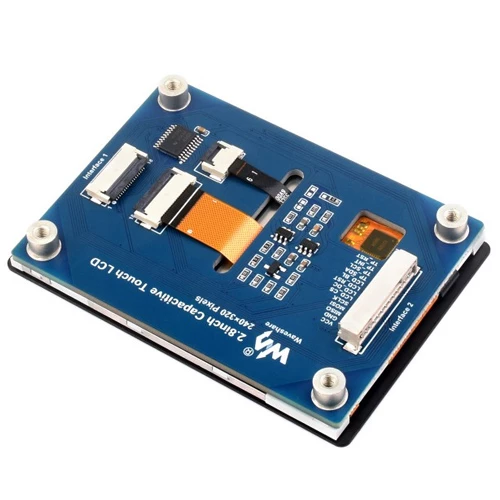

Wave 2.8" Capacitive Touch LCD Display

The Wave 2.8" Capacitive Touch LCD Display is a compact and vibrant TFT display module, offering a resolution of 240×320 pixels with 262K colors for a clear and colorful visual experience. Designed with a capacitive touch panel and a CST328 controller, it supports 5-point multi-touch with high transmittance, fast response, and durability.



Powered by the ST7789T3 display driver, the module supports 4-wire SPI communication for the display and I2C for touch, minimizing IO pin usage. It features onboard voltage translation, making it compatible with both 3.3V and 5V systems. The module is equipped with 13PIN and 18PIN FPC slot connection options, ensuring versatility for integration with Raspberry Pi, Arduino, ESP32S3, and Raspberry Pi Pico. Development resources and examples are included for a seamless setup.

Quick Spec

• Resolution: 240 × 320 pixels, 262K colors
• Display Type: TFT, capacitive touch, 5-point support
• Drivers: ST7789T3 (display), CST328 (touch)
• Interfaces: 4-wire SPI (display), I2C (touch)
• Operating Voltage: 3.3V / 5V
• Connection Options: 13PIN connector, 18PIN FPC slot

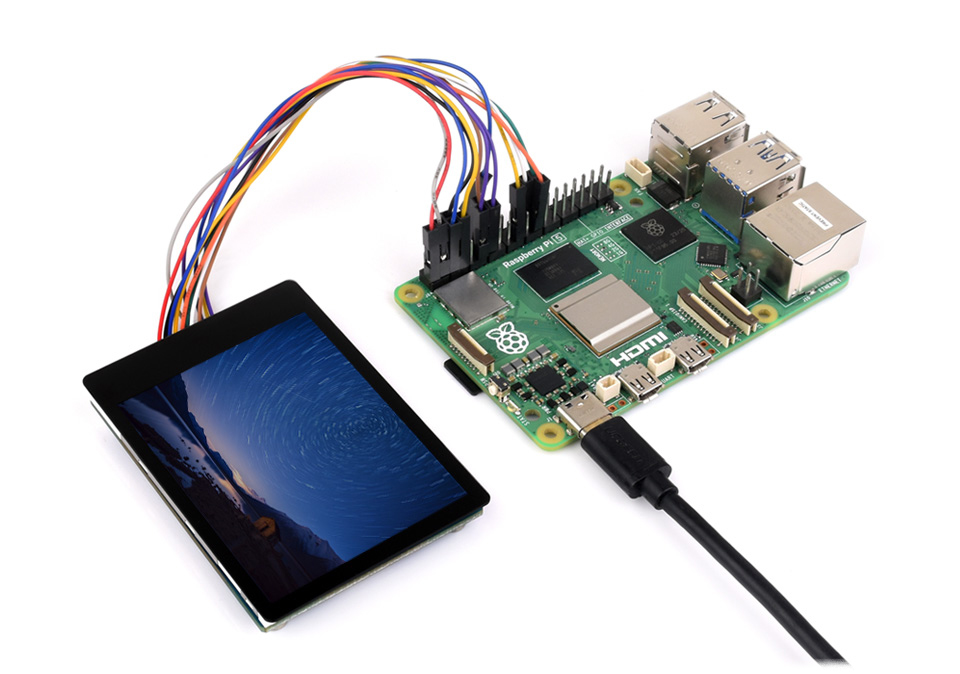

• Compatibility: Raspberry Pi, Arduino, ESP32S3, Raspberry Pi Pico
• Pixel Pitch: 0.18 x 0.18mm
• Display Size: 43.20 x 57.60mm
• Dimensions: 50.5 x 73mm

Dimensions

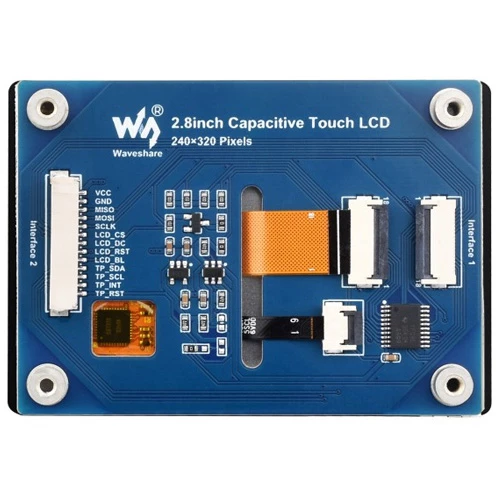

Pinout

Resources

• Product Page
• Product Wiki
• Schematic
• ST7789T3 Datasheet
• Sample Demo

Shipping List

• 1 x Wave 2.8" Capacitive Touch LCD Display
• 1 x JST-GH 1.25mm 13-Pin cable
• 1 x FPC cable (same sides)

Wave 2.8" Capacitive Touch LCD Display

• Brand: Waveshare
• Product Code: W27579
• Weight: 0.056kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	No Stock
Stellenbosch	No Stock
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R312.00 (Inc Tax: R358.80)
