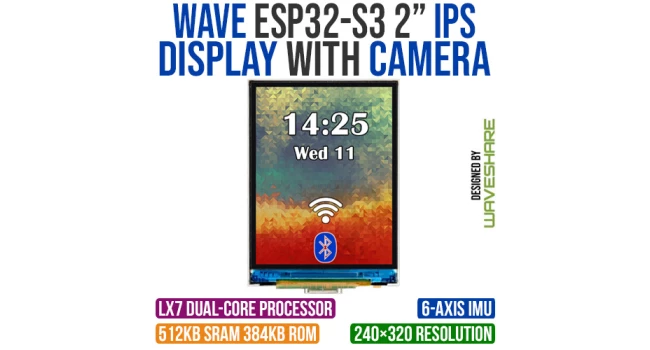

Wave ESP32-S3 2" IPS Display with OV5640 Camera

The Waveshare ESP32-S3 2" IPS Display with OV5640 Camera is a compact yet powerful development board built around the ESP32-S3R8 dual-core microcontroller, designed for intelligent vision, wireless, and IoT applications. Featuring a 2-inch 240×320 IPS display and an integrated 5MP OV5640 camera module, it’s ideal for image capture, display control, and embedded AI projects.



Powered by the Xtensa LX7 dual-core processor (up to 240 MHz) with Wi-Fi (802.11 b/g/n) and Bluetooth 5 LE connectivity, the board delivers strong performance for wireless data transfer and real-time processing. It includes 8 MB PSRAM and 16 MB Flash, ensuring smooth multitasking and fast data access. Onboard components such as the QMI8658 6-axis IMU, TF card slot, and battery charge/discharge circuit make it perfect for portable, sensor-based, or edge computing applications.

With 22 GPIO pins, an SPI-driven ST7789T3 display, and full Arduino IDE and ESP-IDF support, this development board is well-suited for IoT devices, vision-enabled robotics, handheld controllers, and display-based embedded projects.

Quick Spec

• Processor: ESP32-S3R8, Xtensa LX7 dual-core, up to 240 MHz
• Memory: 512 KB SRAM, 384 KB ROM, 8 MB PSRAM, 16 MB Flash
• Wireless: 2.4 GHz Wi-Fi (802.11 b/g/n), Bluetooth 5 (LE)
• Display: 2" IPS LCD, 240 × 320 resolution, 262K colors, ST7789T3 driver (SPI)
• Camera: OV5640 5MP camera module (compatible interface with OV2640/OV5640)
• Sensors: QMI8658 6-axis IMU (3-axis accelerometer + 3-axis gyroscope)
• Storage: Onboard TF card slot
• Interfaces: USB Type-C, 22 × GPIO, camera interface (OV2640 / OV5640 support)
• Battery: 3.7 V lithium battery interface with charging and discharge management
• Development: Supports Arduino IDE & ESP-IDF
• Dimensions: Compact 2" form factor

Dimensions

Board Layout

Pinout

Resources

• Product Page
• Product Wiki
• Schematic

Shipping List

• 1 x Wave ESP32-S3 2" IPS Display with OV5640 Camera
