Wave ESP32-S3 2.41" AMOLED Touch Display
The Wave ESP32-S3 2.41" AMOLED Touch Display is a powerful and cost-effective ESP32-S3 development board designed for intuitive GUI, automation, and IoT applications. Powered by a dual-core Xtensa LX7 processor running up to 240MHz, it integrates Wi-Fi (802.11 b/g/n) and Bluetooth 5 (BLE) connectivity, along with 16MB Flash and 8MB PSRAM for high-performance graphical processing. The vibrant 2.41" AMOLED capacitive touch display offers a 600×450 resolution and 16.7M colors, providing exceptional visual clarity and responsiveness for smooth user interface experiences.
Equipped with a QMI8658 6-axis IMU, PCF85063 RTC, TF card slot, and USB Type-C interface, this board offers extensive functionality for embedded projects. Its onboard QSPI and I²C interfaces, UART connectors, and 34-pin GPIO header ensure seamless integration and expandability. Supported by comprehensive SDKs, documentation, and LVGL GUI demos, the ESP32-S3-Touch-AMOLED-2.41 is ideal for developers looking to create advanced display-driven IoT and HMI systems with precision, speed, and style.
Quick Spec
- MCU: ESP32-S3R8 (Xtensa LX7 Dual-Core, up to 240MHz)
- Wireless: Wi-Fi 2.4GHz (802.11 b/g/n), Bluetooth 5 (LE)
- Memory: 512KB SRAM, 384KB ROM, 16MB Flash, 8MB PSRAM
- Display: 2.41" AMOLED, 600×450 resolution, 16.7M colors
- Brightness: 800 cd/m²
- Contrast Ratio: 100000:1
- Touch: Capacitive (FT6336 controller, I²C interface, 5-point touch)
- Display Driver IC: RM690B0 (QSPI interface)
- Sensors: QMI8658 6-axis IMU (accelerometer + gyroscope)
- RTC: PCF85063 with SH1.0 battery header
- Storage: TF card slot
- Interfaces: USB Type-C, UART, I²C, GPIO header
- Power: 3.7V lithium battery header (MX1.25)
- Compatibility: LVGL GUI, Arduino, ESP-IDF, and other ESP32 platforms
Dimensions

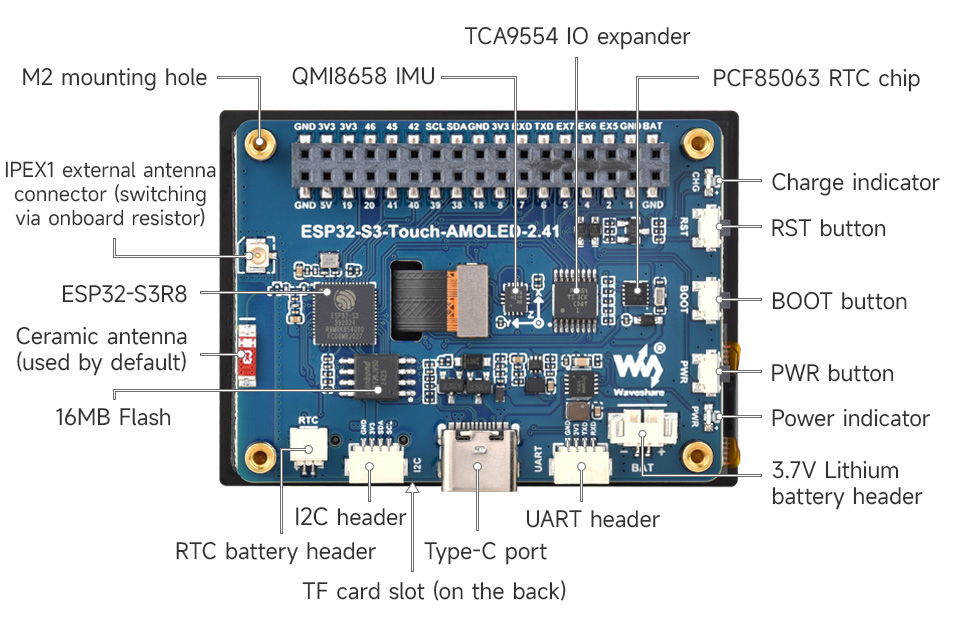

Board Layout
Pinout
Resources
- Product Page
- Product Wiki
- Schematic
- ESP32-S3 Datasheet
- RM690B0 Datasheet
- QMI8658 Datasheet
- PCF85063 Datasheet
- FT6336 Datasheet
- Demo
Shipping List
- 1 x Wave ESP32-S3 2.41" AMOLED Touch Display
- 2 x SH1.0 4-Pin cable ~100mm
Wave ESP32-S3 2.41" AMOLED Touch Display
- Brand: Waveshare
- Product Code: W30563
- Weight: 0.053kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R1,047.00 (Inc Tax: R1,204.05)
